Vehicle Cameras
JK-C775
80G Shockproof Mirror Arm Camera
Heavy-duty mirror arm mount camera for side and rear monitoring on trucks, buses, RVs, and commercial vehicles.
jk-c775

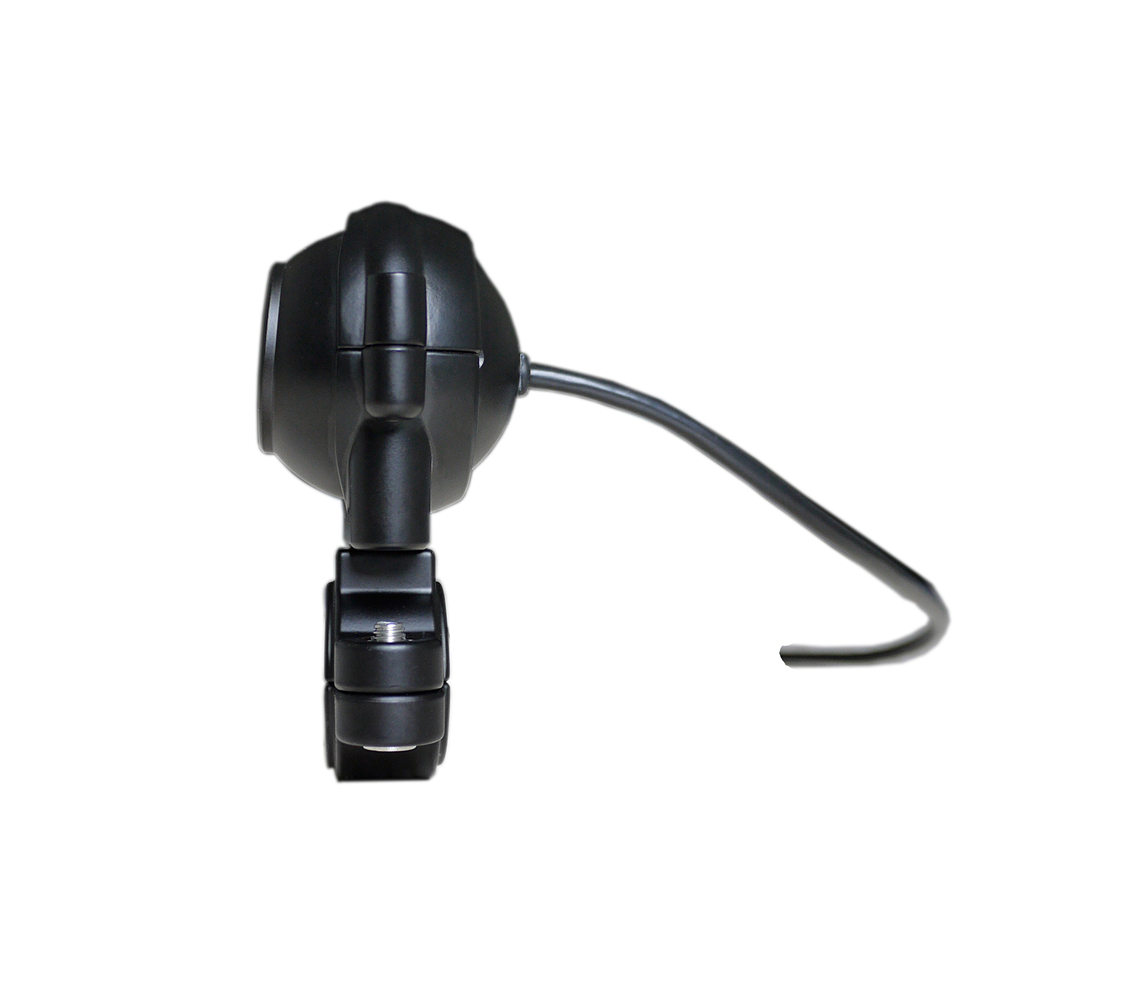

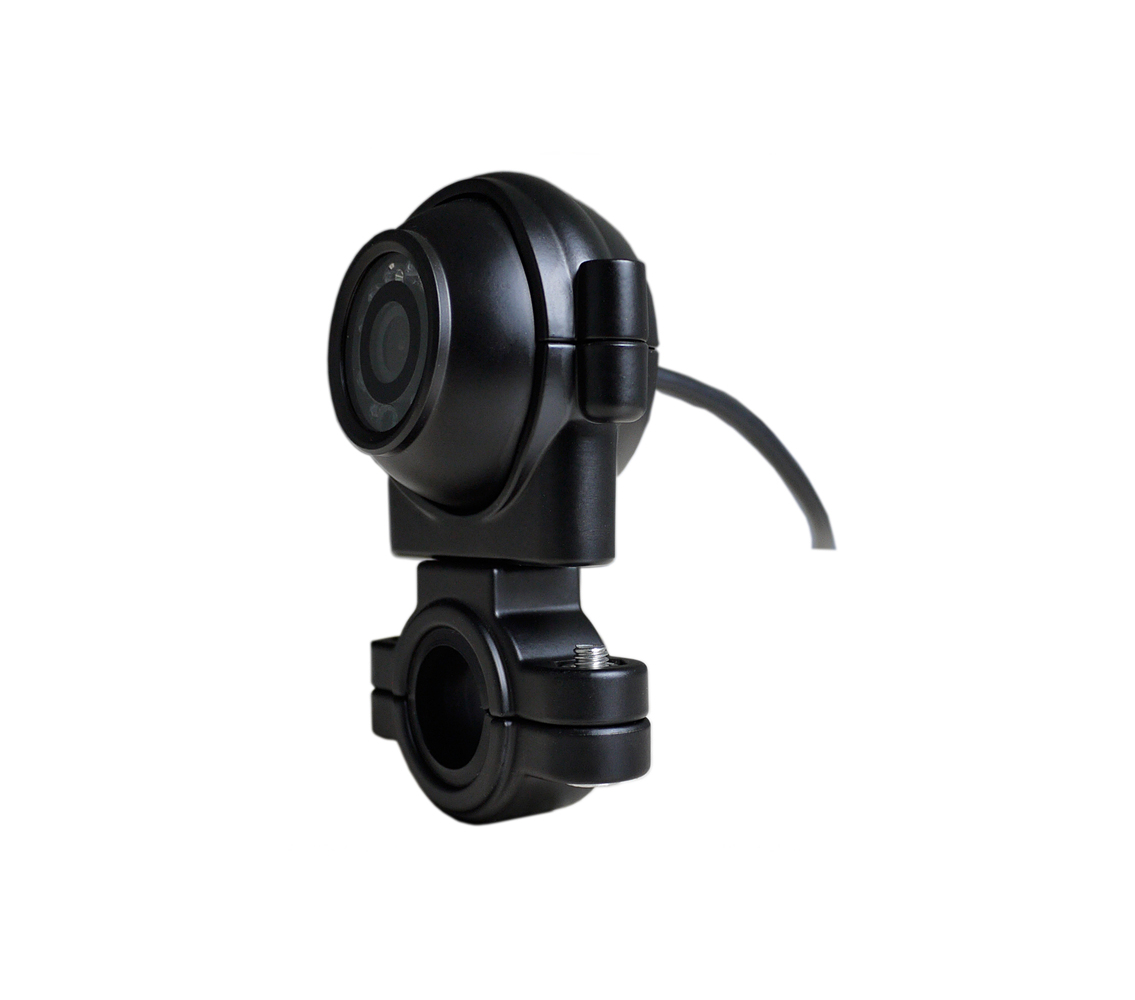

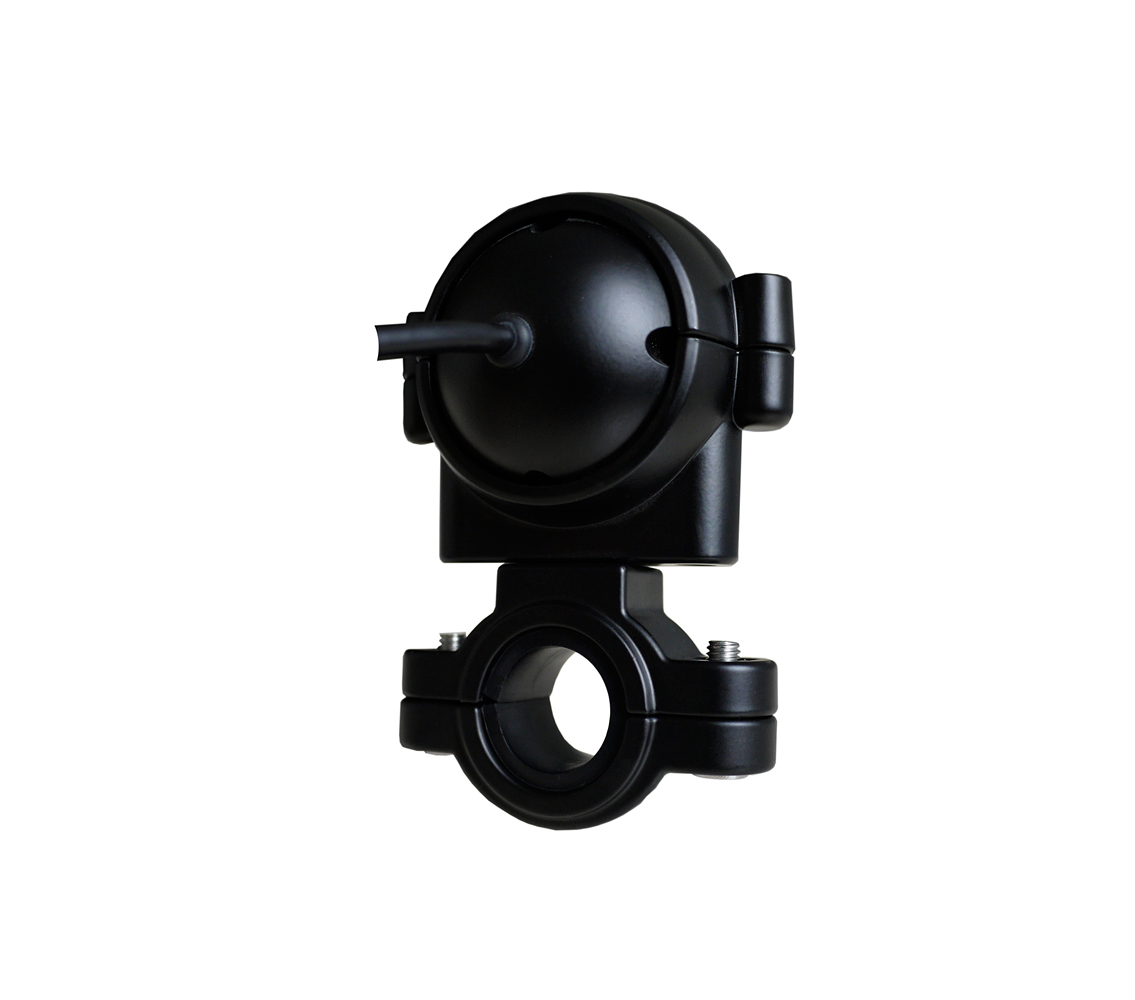

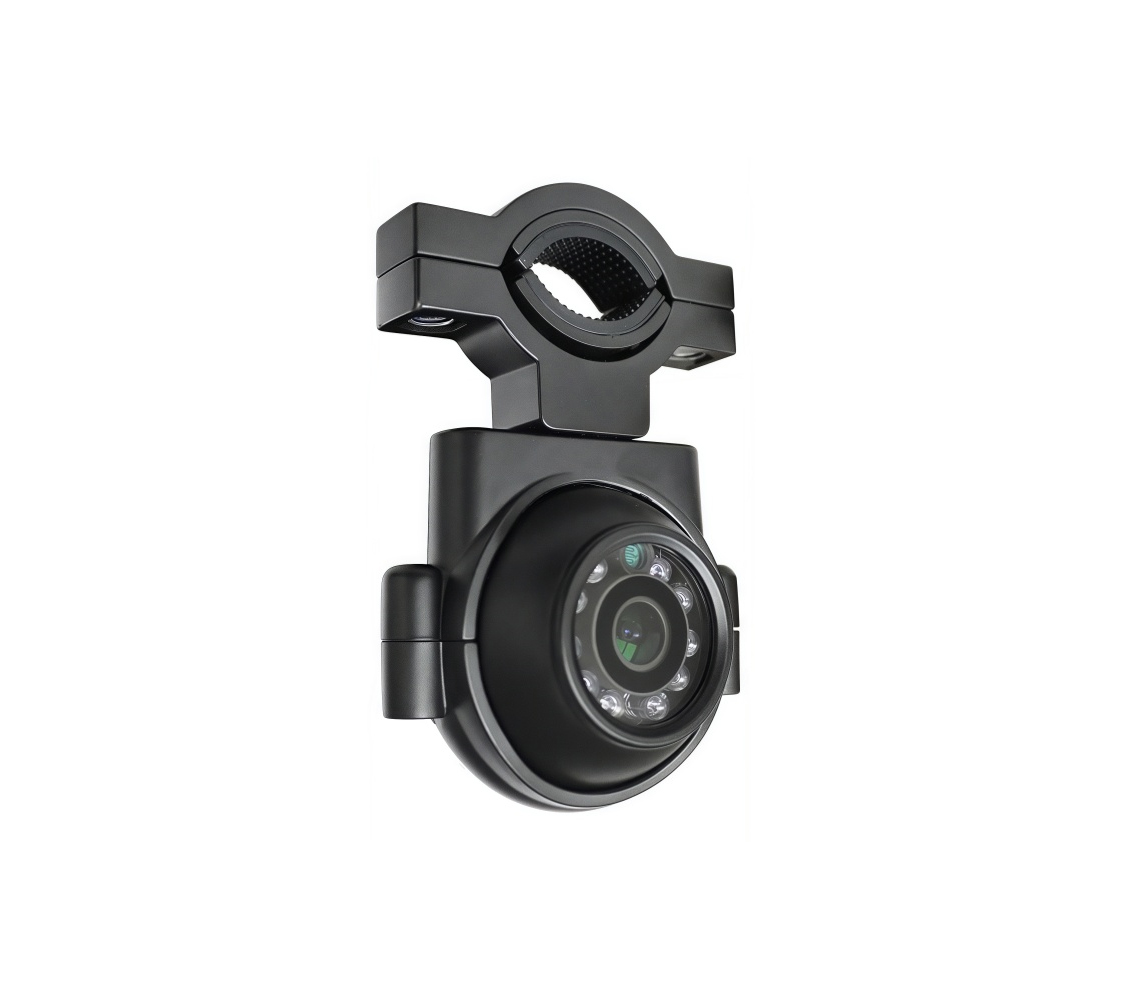

Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasIP69K CamerasAI CamerasIP Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Module: CVBS / AHD / IPC optional
- Resolution: 720P / 1080P
- Viewing Angle: 90° / 110° / 120° optional
- Night Vision Range: 10m infrared night vision
- Mounting: Comes with stainless steel clamps for mounting onto a round support tube or mirror arm; can also be mounted directly onto the vehicle body surface when a tube-clamp bracket is not required
- Protection: IP69K waterproof and dustproof, resistant to high-pressure washing
- Shock Resistance: 80G impact-resistant structure design
- Housing: Black metal housing
- Dimensions: 75 × 51 × 112.5 mm
