360° Surround View

Name: 360° Surround View
Brand: JMK

AVM systems that stitch multiple cameras into a seamless bird's-eye view with no blind spots.

Overview

Built on standardized, certification-ready platforms

JMK 360° surround-view (AVM) systems combine four wide-angle cameras into a single bird’s-eye view of the vehicle and everything around it. Drivers see kerbs, people and obstacles in every direction on one screen, dramatically reducing low-speed collisions during turning, reversing and parking. Fast automatic calibration keeps installation time short.

4-camera seamless image stitching
Fast automatic calibration
2D and 3D viewing modes
Designed for trucks, buses and heavy equipment

surround view 360° Surround View

Specifications

Technical parameters

Detailed model-by-model specifications and datasheets are available on request. Core parameters follow industry norms and are confirmed per configuration.

Cameras	4 × fisheye
View modes	2D / 3D bird's-eye
Output resolution	1080p
Calibration	automatic
AI detection	optional BSD
Operating voltage	DC 9–36V
Ingress protection	IP69K (cameras)
Datasheet	Request the full datasheet →

Product models

Models in this range

Select any model for full features and technical parameters.

Featured model

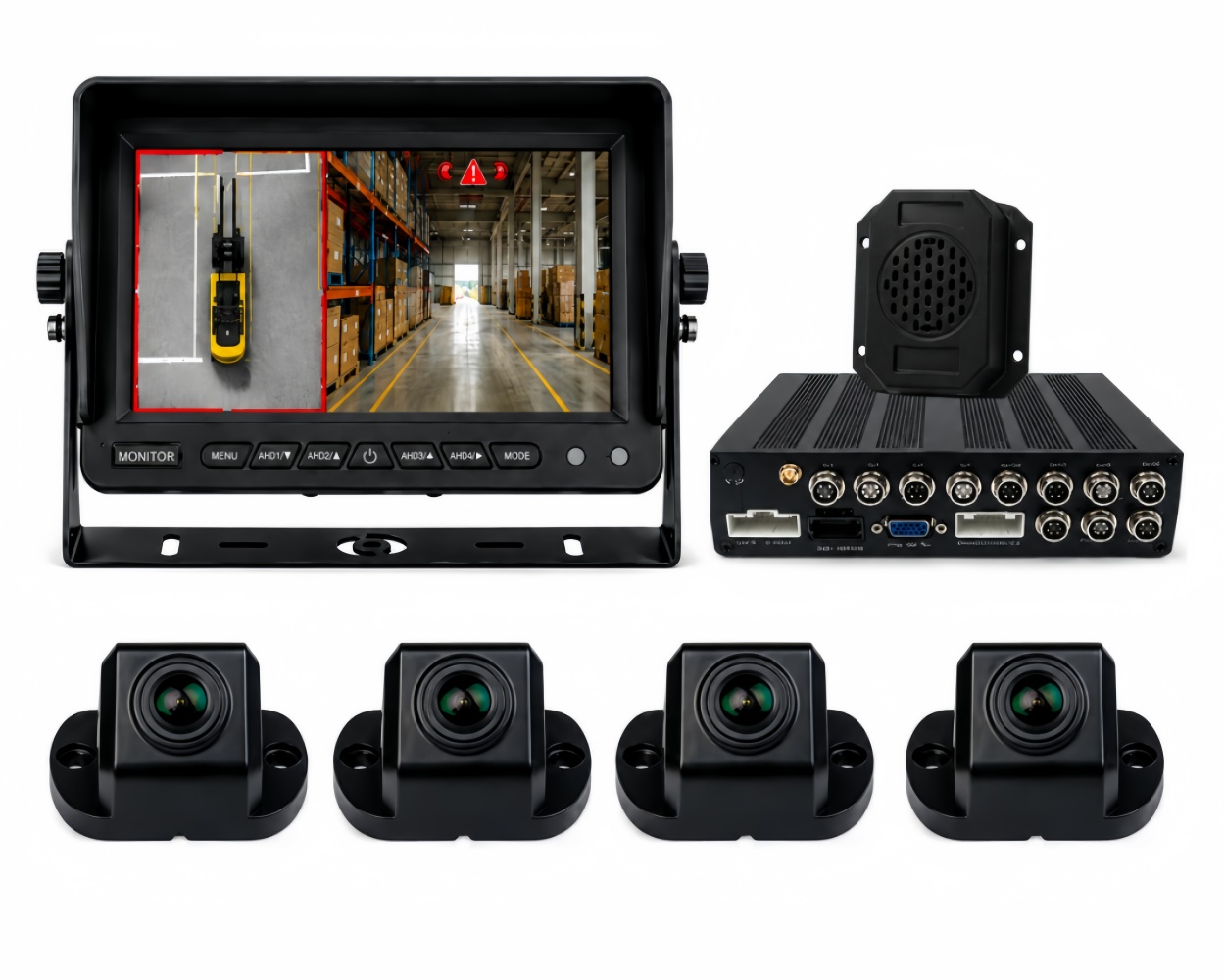

J360-C259-A08

JMK’s AI 360° surround-view system uses four ultra-wide-angle cameras to provide a seamless, real-time bird’s-eye view around trucks, buses, trailers, refuse vehicles, construction machinery and mining haul trucks. Advanced DSP stitching corrects lens distortion and minimizes dark corners for clearer blind-spot coverage. The system integrates AI pedestrian and vehicle detection, BSD / LCA alerts, up to 16 ultrasonic sensors, CAN data integration and automatic view switching. Multi-channel 1080P H.265 DVR recording provides reliable footage for safer driving, incident evidence and fleet management.

View details →

J360-C771N-A07

JMK’s 360° surround‑view monitor system combines four wide‑angle IP69K cameras with an integrated display, eliminating the need for a separate AVM control box. Powered by advanced DSP algorithms, it delivers a smooth, real‑time bird’s‑eye view with distortion correction. Compared with conventional stitching systems, it minimizes dark corners and image distortion for clearer, blind‑spot‑free visibility. Designed for trucks, buses and heavy‑duty fleets, it improves safety during parking, reversing, docking and narrow‑road driving.

View details →

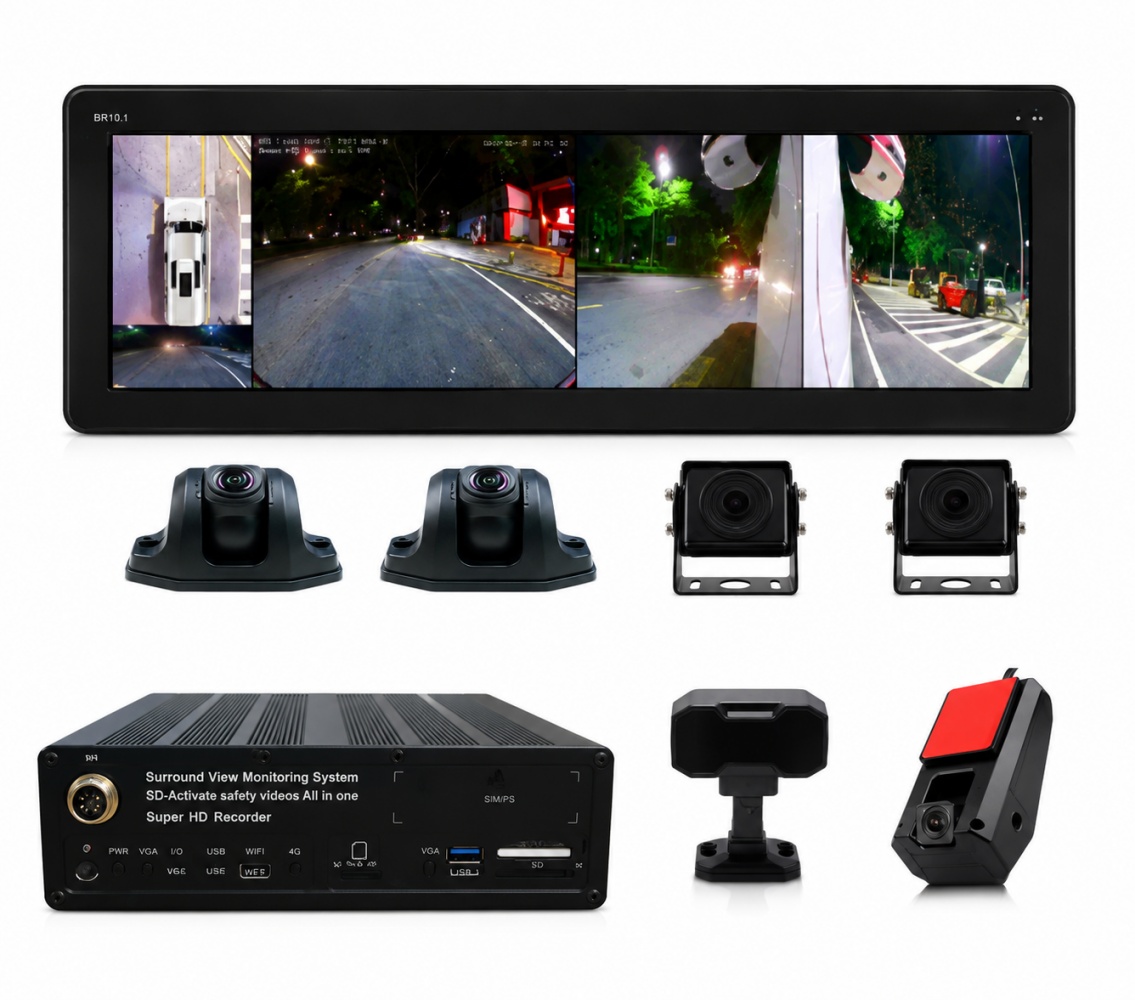

J360-C262-A09

Designed for trucks, buses, school buses, tankers and construction vehicles, this integrated system combines 360° surround view, multi-channel DVR recording, 4G, GPS, CAN, ADAS, DMS, BSD and LCA. It provides real-time safety alerts, remote fleet monitoring and reliable video evidence from one centralized platform.
