BSD, Radar & Sensors

Name: BSD, Radar & Sensors
Brand: JMK

Blind-spot detection, radar and ultrasonic sensors that warn drivers of people and obstacles in real time.

Overview

Built on standardized, certification-ready platforms

JMK blind-spot detection combines radar and vision to warn drivers of pedestrians, cyclists and obstacles in the danger zone before a collision can happen. Audible and visual alerts escalate with risk, and ultrasonic sensors add close-range reversing support — protecting vulnerable road users around large vehicles.

Radar-based blind-spot detection
Audible and visual driver alerts
Pedestrian and cyclist warning
Ultrasonic reversing aids

bsd radar

Specifications

Technical parameters

Detailed model-by-model specifications and datasheets are available on request. Core parameters follow industry norms and are confirmed per configuration.

Radar	24GHz / 77GHz
Detection range	up to ~30 m
Alerts	audible + visual
Targets	pedestrians, cyclists, vehicles
Ultrasonic	optional reversing sensors
Operating voltage	DC 9–36V
Ingress protection	IP67
Datasheet	Request the full datasheet →

Product models

Models in this range

Select any model for full features and technical parameters.

Featured model

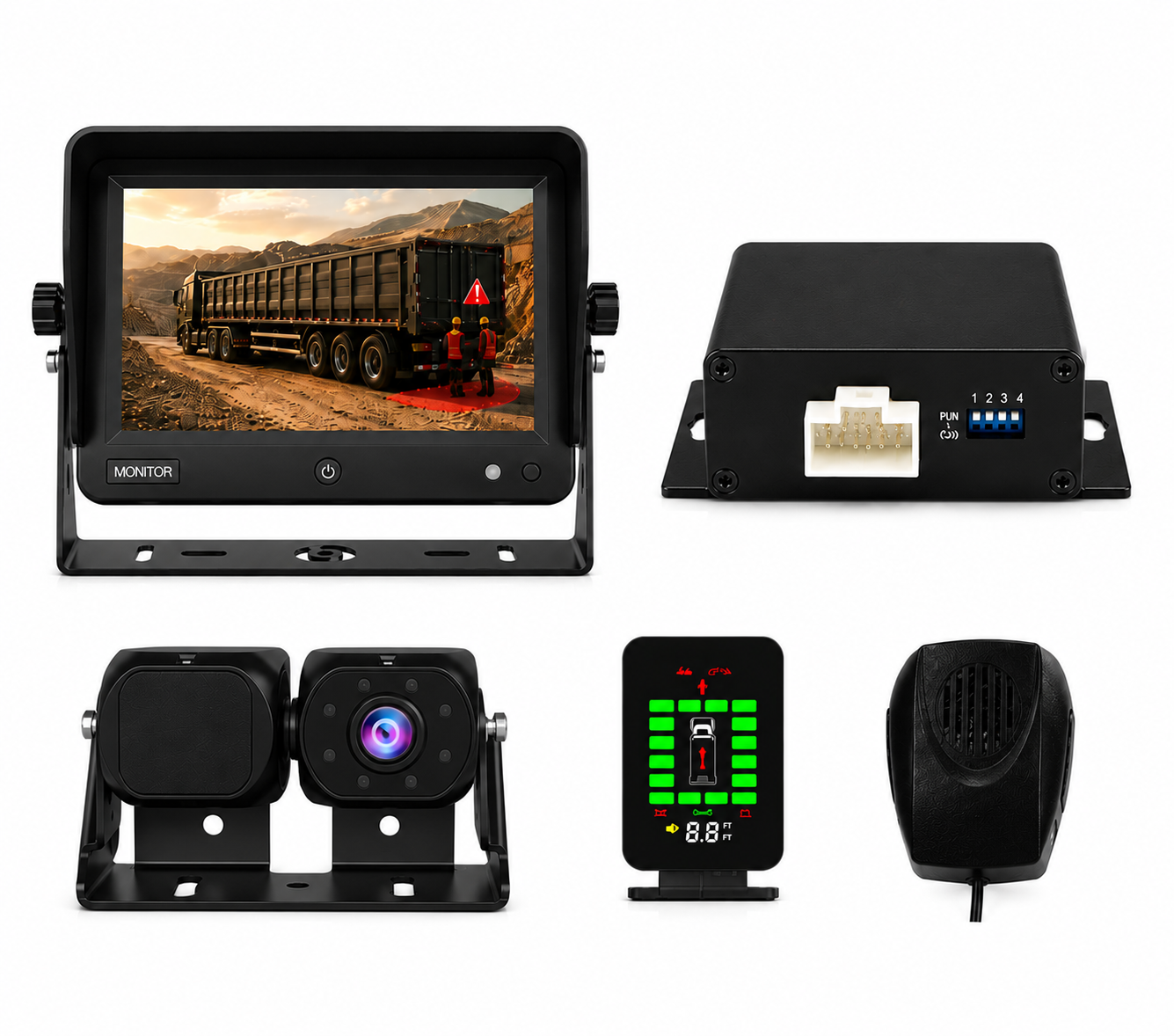

JRR-A7064KT-SD-SL001

This AI radar-camera fusion system combines an HD camera with 77GHz FMCW millimeter-wave radar for real-time blind-spot monitoring, obstacle detection and ranging. It delivers reliable all-weather detection in rain, fog, dust and low-visibility conditions, with a 30m detection range and 0.2m minimum blind zone. Obstacle distance data is overlaid on live video. IP69K-rated, it is ideal for reversing, parking and low-speed maneuvering of trucks, buses, construction machinery and agricultural vehicles.

View details →

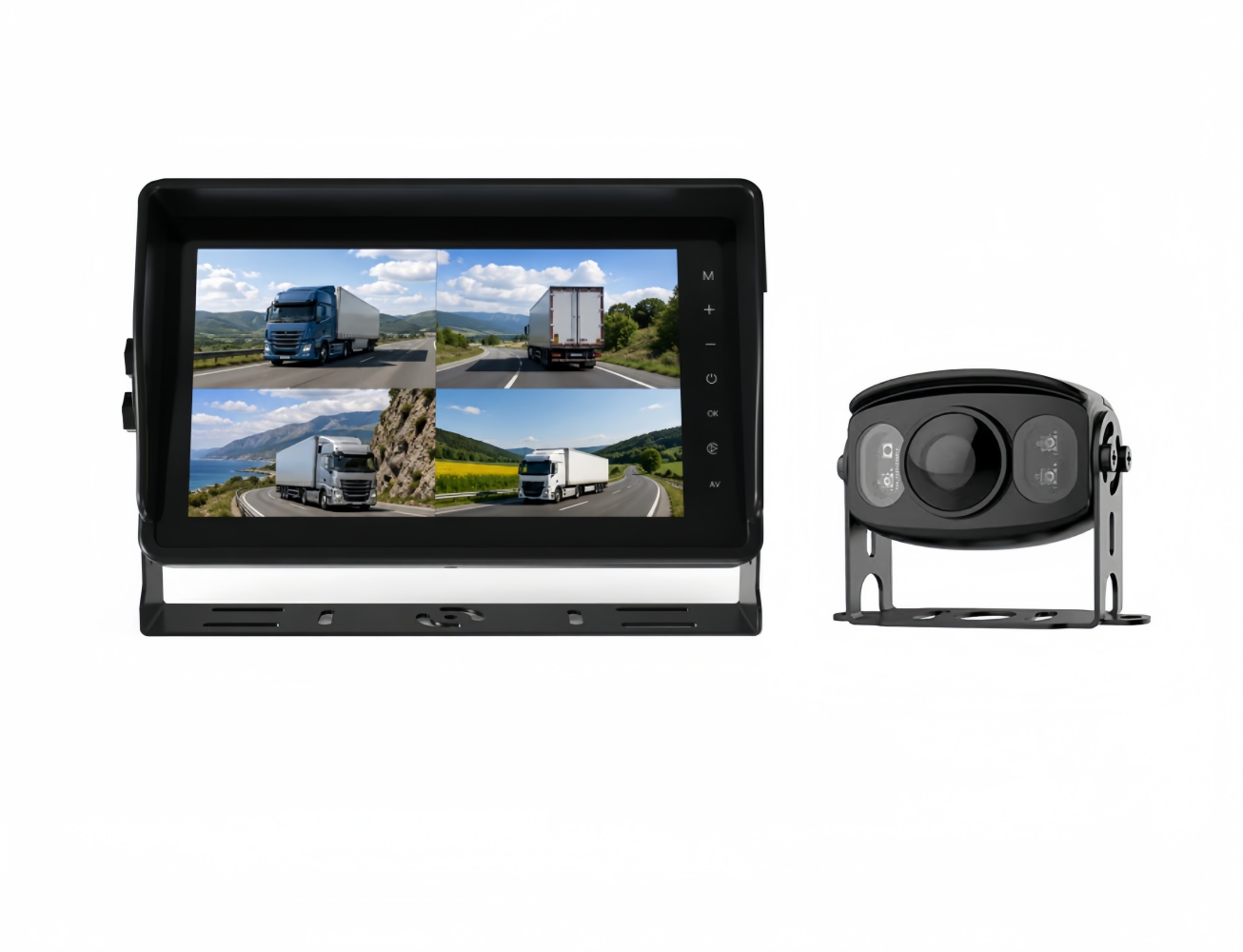

JBSD-A10-BSD-C118DM

This AI camera system with IP69K protection rating features BSD blind spot detection as its core function. It is engineered for heavy-duty trucks, mining and agricultural machinery operating in harsh environments. It can identify pedestrians and vehicles in blind spots in real time and trigger 3-level audio-visual warnings, helping drivers stay focused on operations and reduce collision risks as well as economic losses. Integrated with multi-channel recording, robust waterproof construction and global export compliance, it serves as a reliable BSD safety solution for fleets and importers.

View details →

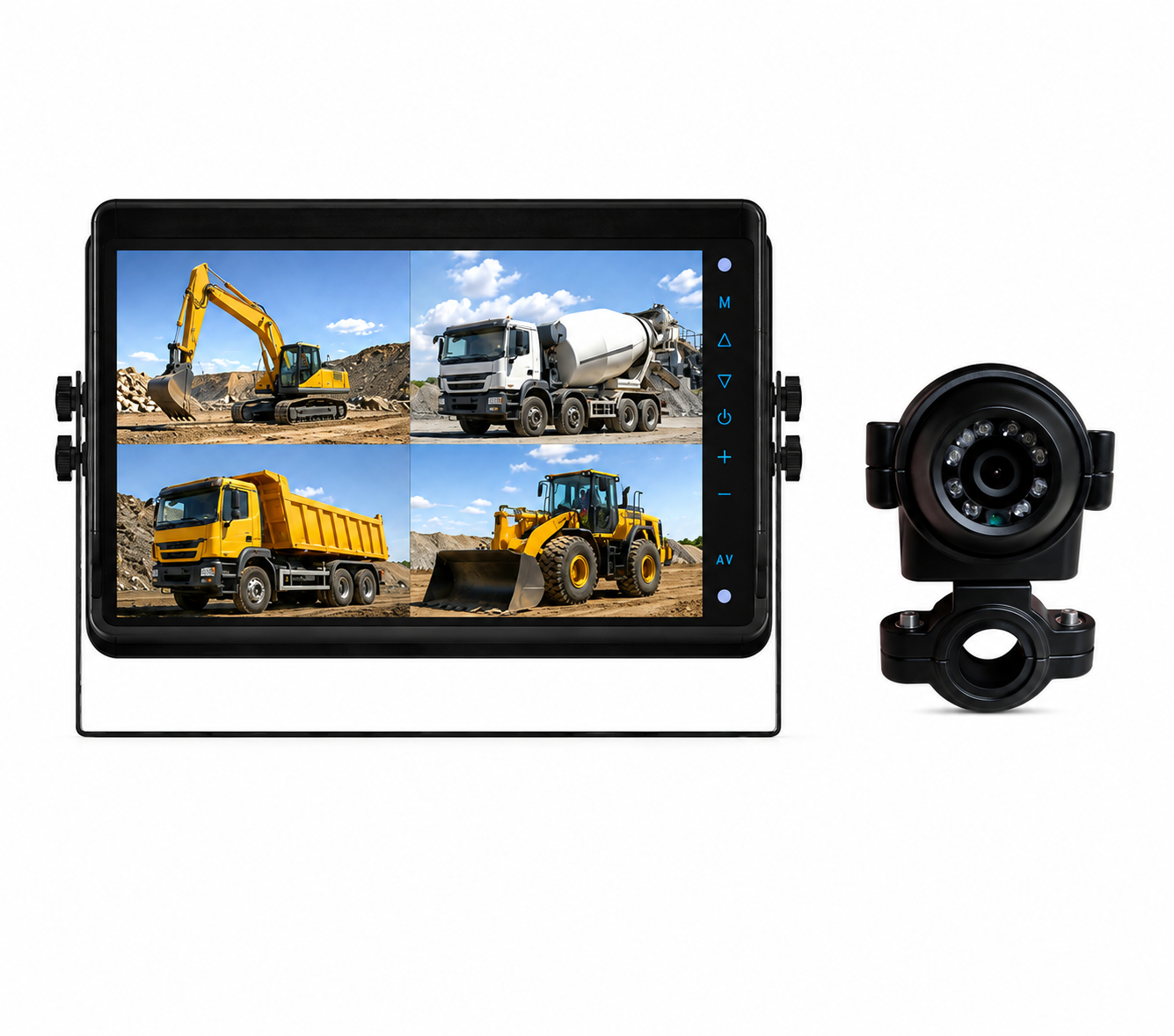

JBSD-A10-STD-C775

This AI BSD camera monitoring system combines a 10-inch IPS DVR monitor with HD night-vision cameras to detect pedestrians, cyclists and vehicles in commercial-vehicle blind spots. It supports 4-channel or 6-channel 1080P multi-view display and recording, providing real-time visual and audible warnings for safer turning, reversing and low-speed operation.

View details →

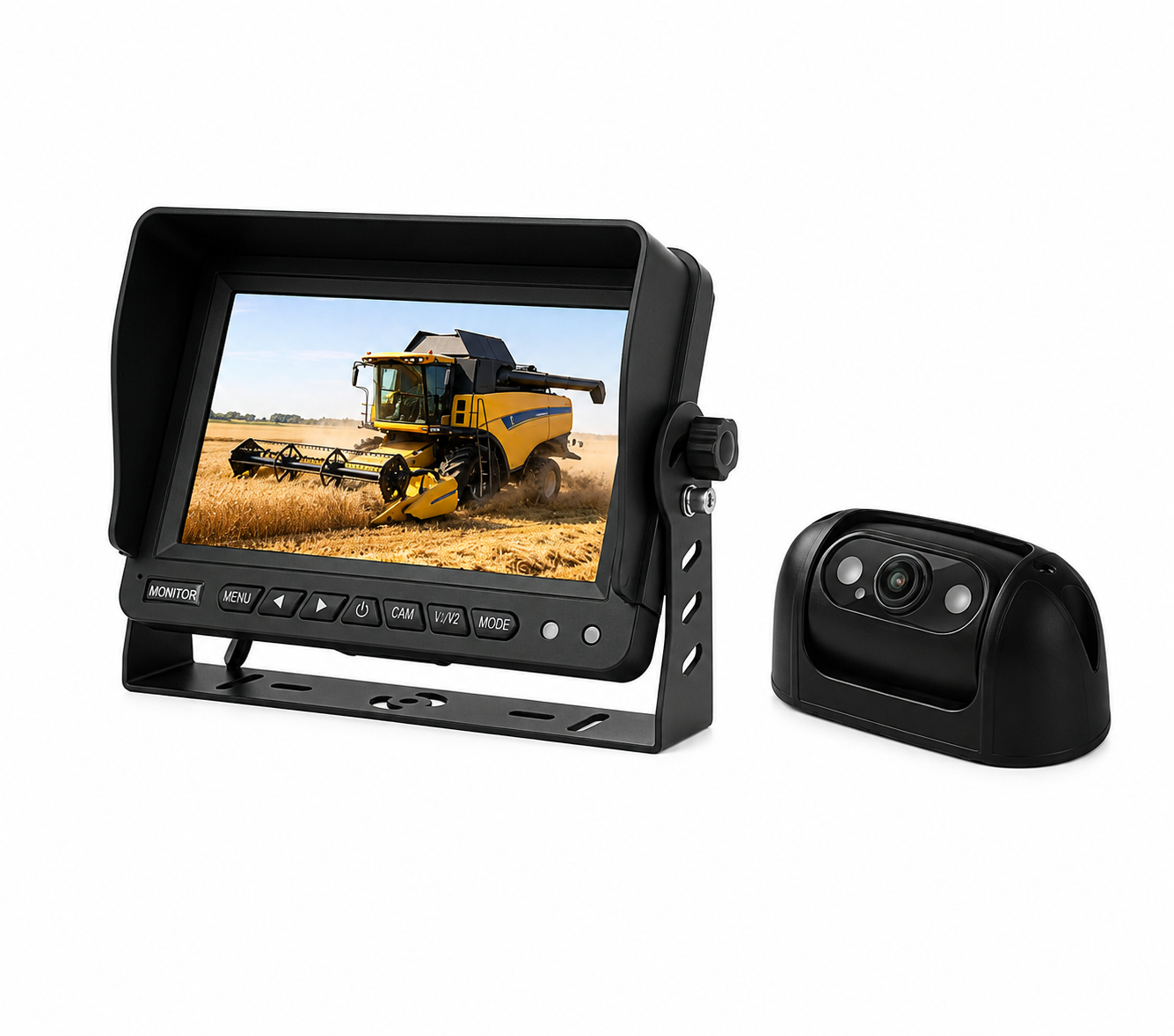

JBSD-A7064KS-SD-C623

This system comprises an AI blind-spot detection (BSD) camera and a 7-inch high-brightness IPS monitor. All AI recognition and alert processing is built into the camera; the monitor handles image display and video recording. As an advanced active BSD solution, it leverages deep learning to accurately detect pedestrians, vehicles and animals within a defined detection zone, and triggers visual and audible pre-collision alerts. It delivers sharper front/rear visibility and higher detection precision than conventional vehicle cameras.

View details →

JK-RD001

Universal Car Parking Sensor Kit, Flexible Installation

View details →

JK-SG001

Red LED Flash Security Vehicle Forklift Lorry Car Warning Alert Lamp Sound Alarm

View details →

JK-SL001-1

Equipped with 77GHz high-precision radar,it monitors distance and speed to warn of potential hazards in real time. Compatible with various vehicle types such as trucks and RVs, it features easy installation and all-weather protection for driver and passenger safety.
