MDVR & Recording Systems

Name: MDVR & Recording Systems
Brand: JMK

Mobile digital video recorders for multi-channel evidence capture, fleet review and incident analysis.

Overview

Built on standardized, certification-ready platforms

JMK mobile DVRs capture synchronised footage from every camera on the vehicle, giving fleets the evidence they need for incident review and driver coaching. GPS positioning ties video to routes and speed, while optional 4G models stream live video and location back to the office in real time.

4 / 8 channel recording
SD card and HDD storage options
GPS positioning and route playback
Optional 4G live streaming

mdvr recording MDVR & Recording Systems

Specifications

Technical parameters

Detailed model-by-model specifications and datasheets are available on request. Core parameters follow industry norms and are confirmed per configuration.

Channels	4 / 8
Storage	SD card / HDD
Compression	H.265 / H.264
Recording	up to 1080p
Positioning	GPS
Connectivity	optional 4G / Wi-Fi
Operating voltage	DC 8–36V
Datasheet	Request the full datasheet →

Product models

Models in this range

Select any model for full features and technical parameters.

Featured model

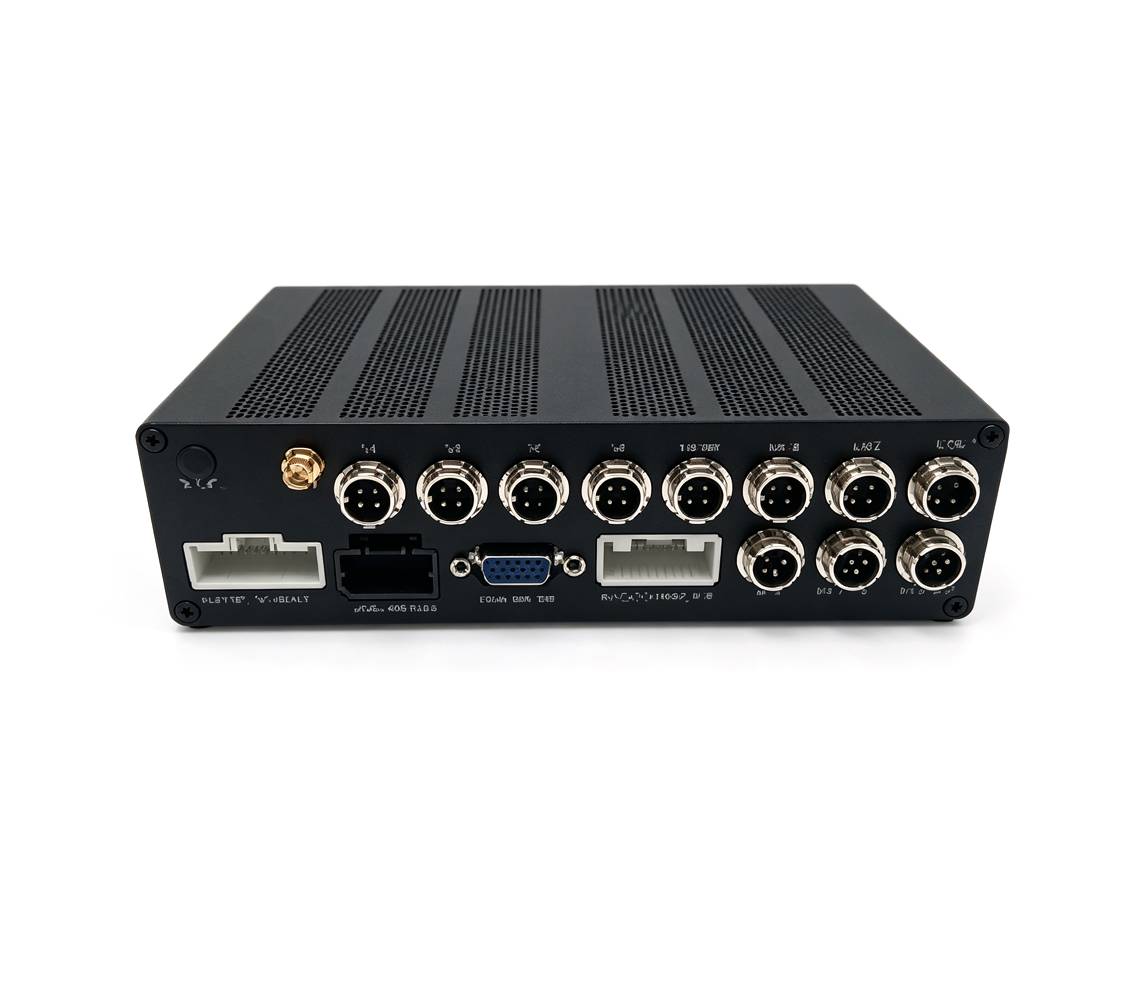

JDR-A08

This AI 360° vehicle DVR is designed for trucks, buses, trailers, construction machinery and special-purpose vehicles, integrating four-channel surround-view recording, AI blind spot detection (BSD), lane change assistance (LCA), 16 ultrasonic sensors and CAN communication. It records one stitched 360° view together with four original camera feeds while providing interior and exterior audible, visual and voice alerts for safer driving.

View details →

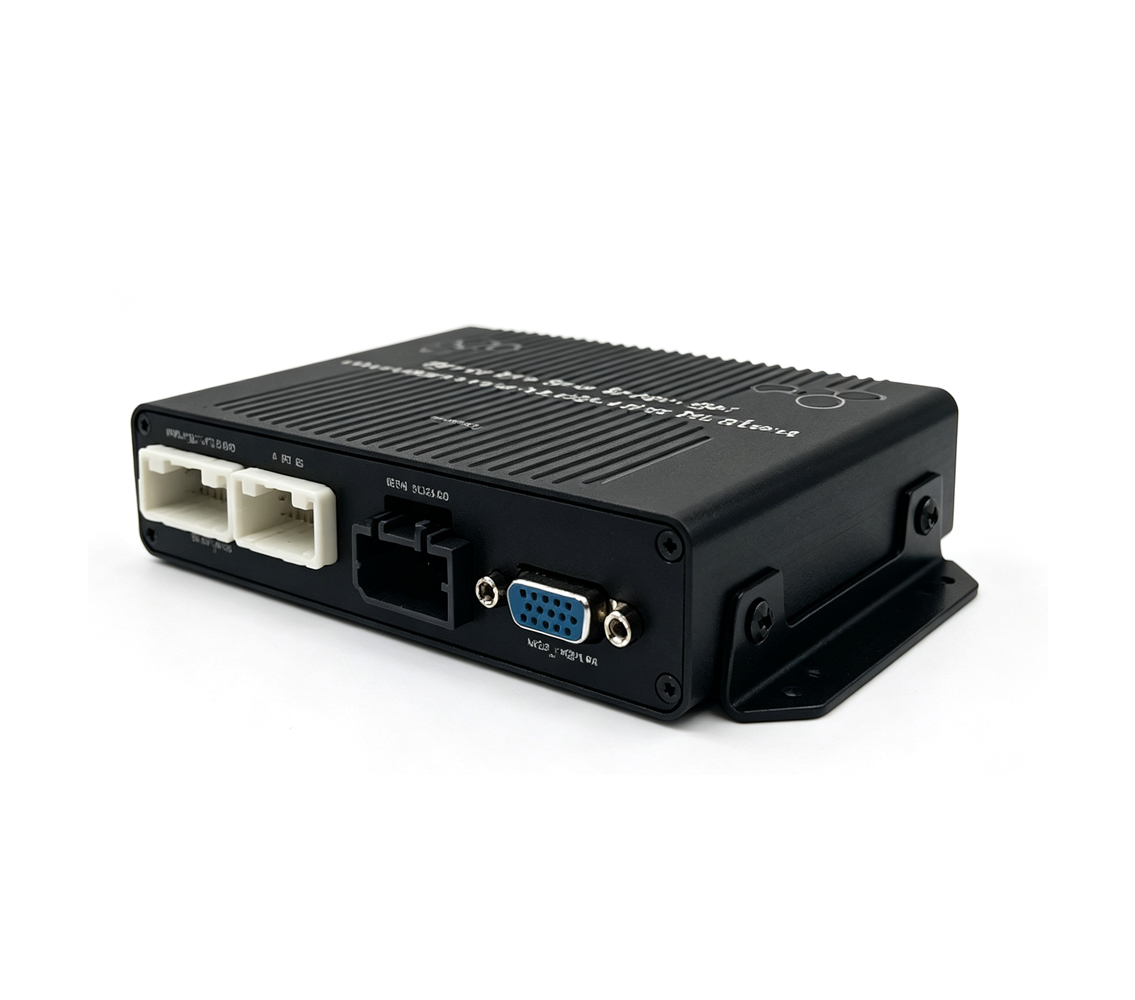

JDR-A07

This 360° Surround‑View Imaging System (DVR) is built for commercial vehicles. It captures surrounding images of the vehicle body via 4 wide‑angle cameras and generates a real‑time bird's‑eye view with intelligent stitching algorithm.

View details →

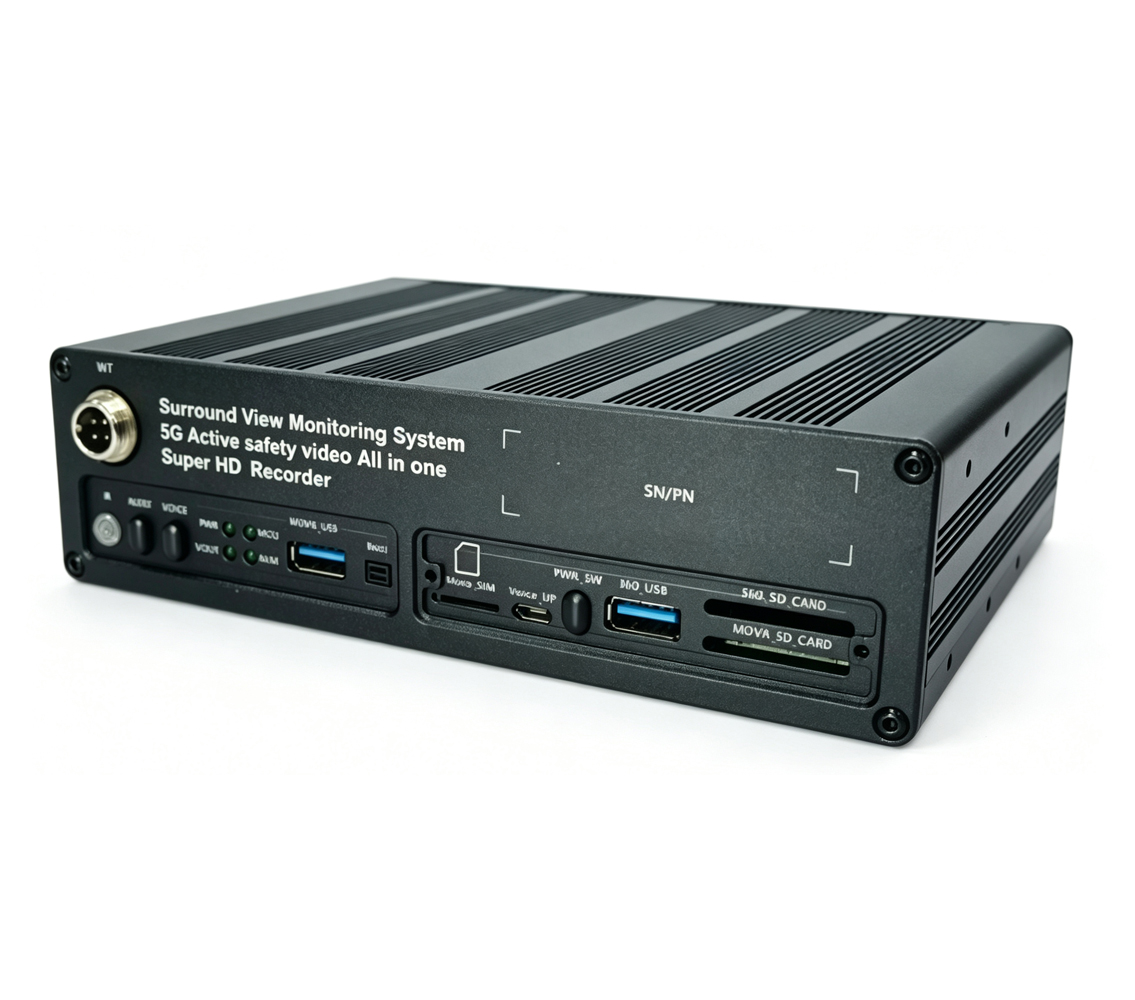

JDR-A09

This AI mobile DVR is designed for trucks, buses, school buses, tankers and construction vehicles, integrating 360° surround view, 4G video transmission, GPS, CAN communication, ADAS, DMS, BSD and LCA. It combines video surveillance with active safety sensors for real-time alerts, evidence recording, remote monitoring and visual fleet management.

View details →

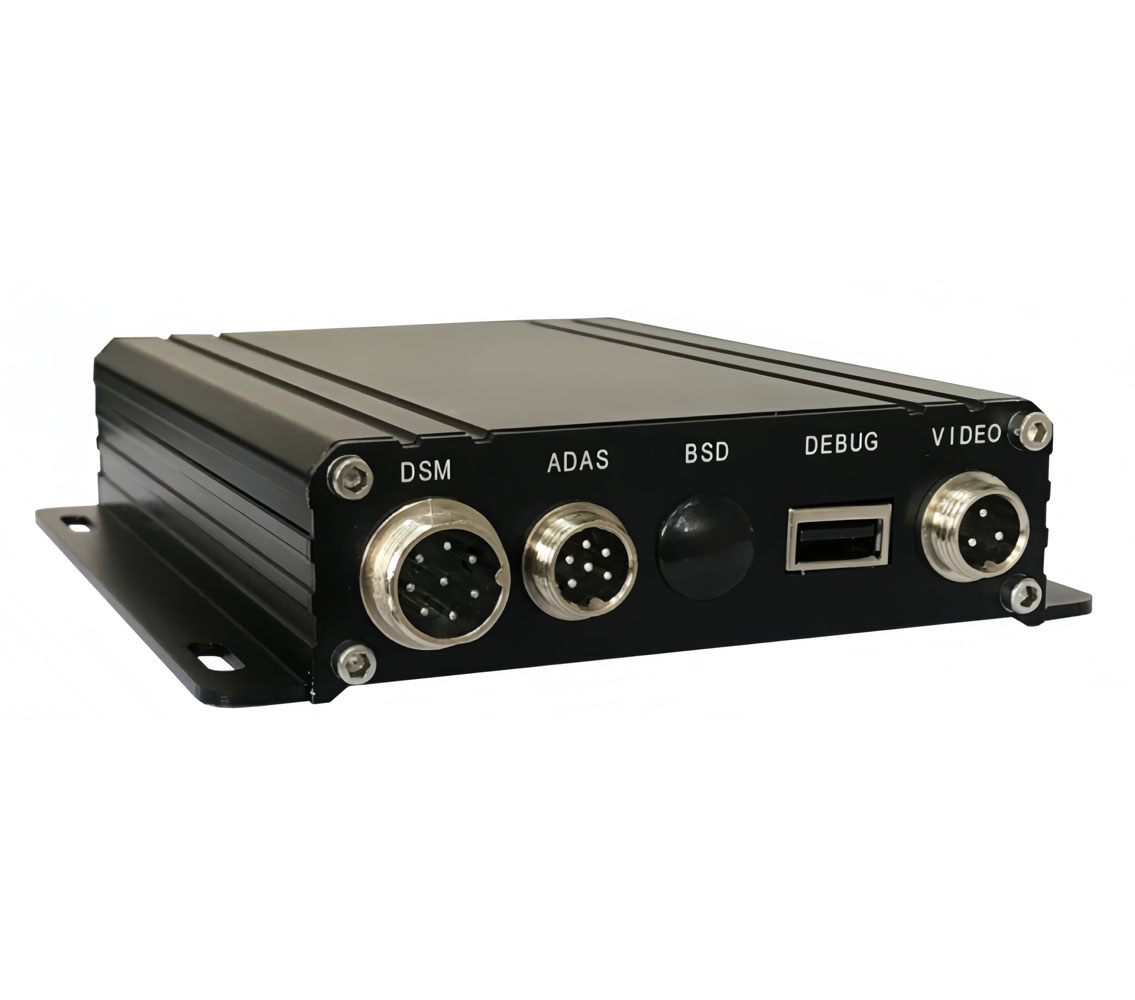

JDR-A101

This ADAS‑DMS vehicle DVR comes with LDW, FPW, FCW functions and driver abnormal‑behavior detection; equipped with DC 8‑32V wide‑voltage input, Android USB quick setup and customizable multilingual voice alerts for real‑time safety monitoring of passenger and commercial vehicles.
