BSD, Radar & Sensors
JBSD-A7064KS-SD-C623
AI Pedestrian Detection Camera with 7‑Inch IPS Monitor
This system comprises an AI blind-spot detection (BSD) camera and a 7-inch high-brightness IPS monitor. All AI recognition and alert processing is built into the camera; the monitor handles image display and video recording. As an advanced active BSD solution, it leverages deep learning to accurately detect pedestrians, vehicles and animals within a defined detection zone, and triggers visual and audible pre-collision alerts. It delivers sharper front/rear visibility and higher detection precision than conventional vehicle cameras.
Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AI Monitoring Systems
- Certifications
- CEFCCE-MARKROHSIP69K
Key features

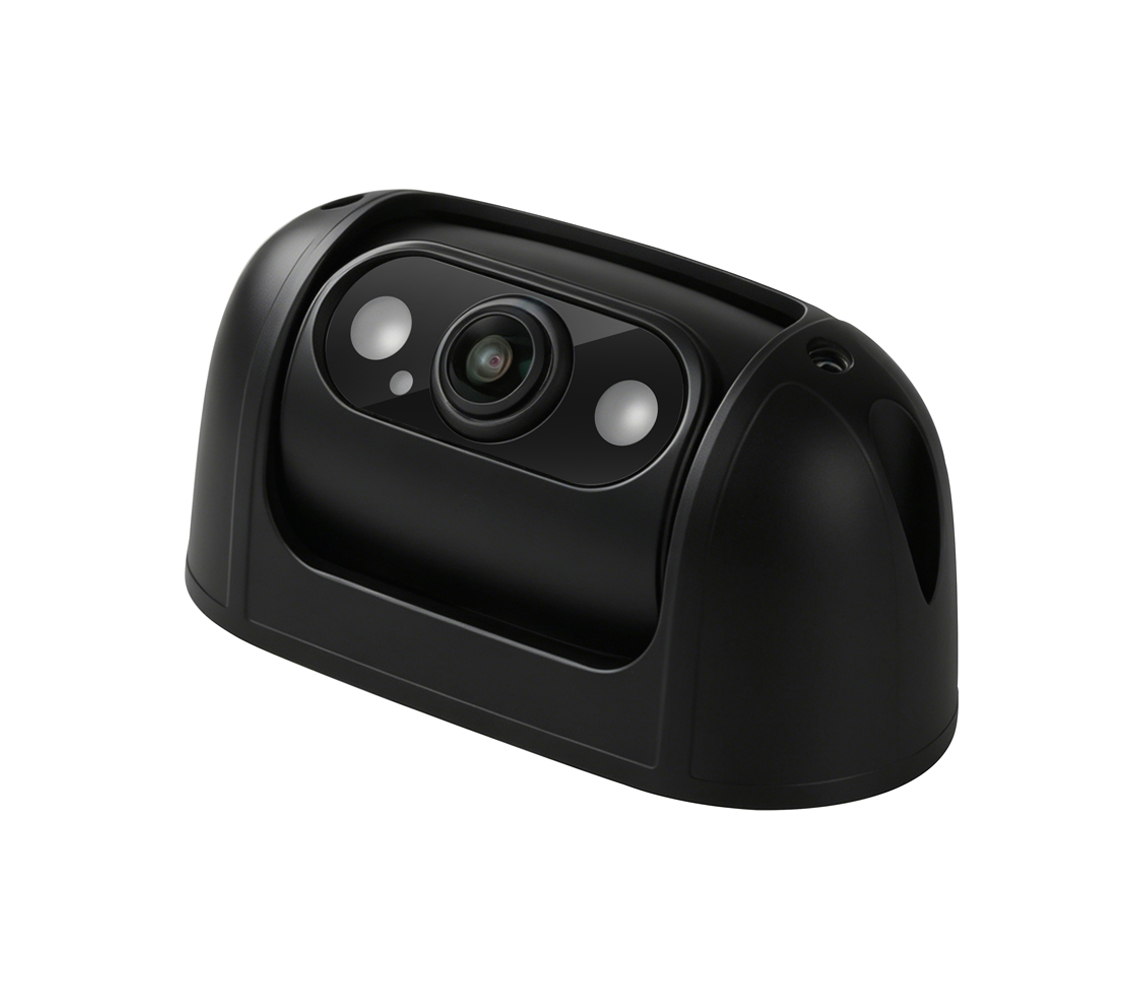

- AI BSD Camera with Multi-Target Detection
- Built-in human, vehicle and animal model recognition algorithm ensures high alarm accuracy. It detects targets in front and rear blind spots, and marks detected objects with a colored box overlay on the HD feed. All image processing and detection overlay functions are integrated inside the camera. It triggers instant buzzer alarm when targets approach the reversing area, and supports external buzzer and high-temperature overload protection.

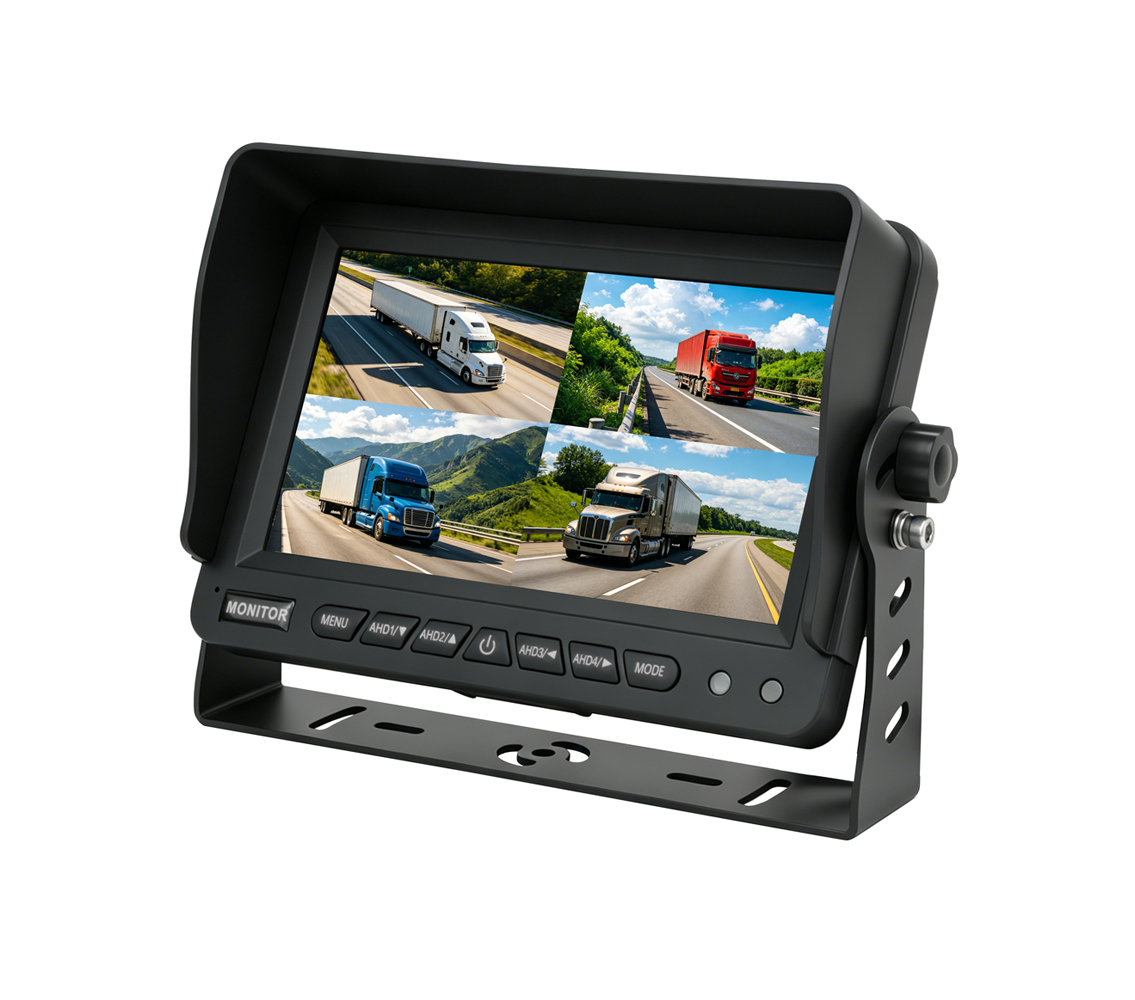

- 7-Inch High-Brightness IPS DVR Monitor (Display & Recording Only)
- Supports up to 4 mixed 1080P/720P AHD & CVBS camera inputs with flexible split-screen viewing for front, side and rear monitoring. Built-in H.264 DVR with up to 256GB storage; DC 9–36V wide-voltage input, suitable for trucks, buses and heavy-duty vehicles. No built-in BSD function.
- Plug-and-Play & Wide Compatibility
- No configuration software required for quick installation. The AI camera is universally compatible with AHD HD screens, all standard HD monitors and MDR digital video recorders.
- Wide Application Scenarios
- Suitable for commercial vehicles (trucks, buses, coaches) and industrial equipment (stackers, forklifts, engineering machinery), covering transport, logistics, construction and other industries
