Vehicle Cameras
JK-C120
Dual-Lens IR Windshield Camera
Dual-lens high-definition vehicle camera with built-in microphone, suitable for sedans, taxis, rideshare vehicles, ambulances and various fleet vehicles.
jk-c120

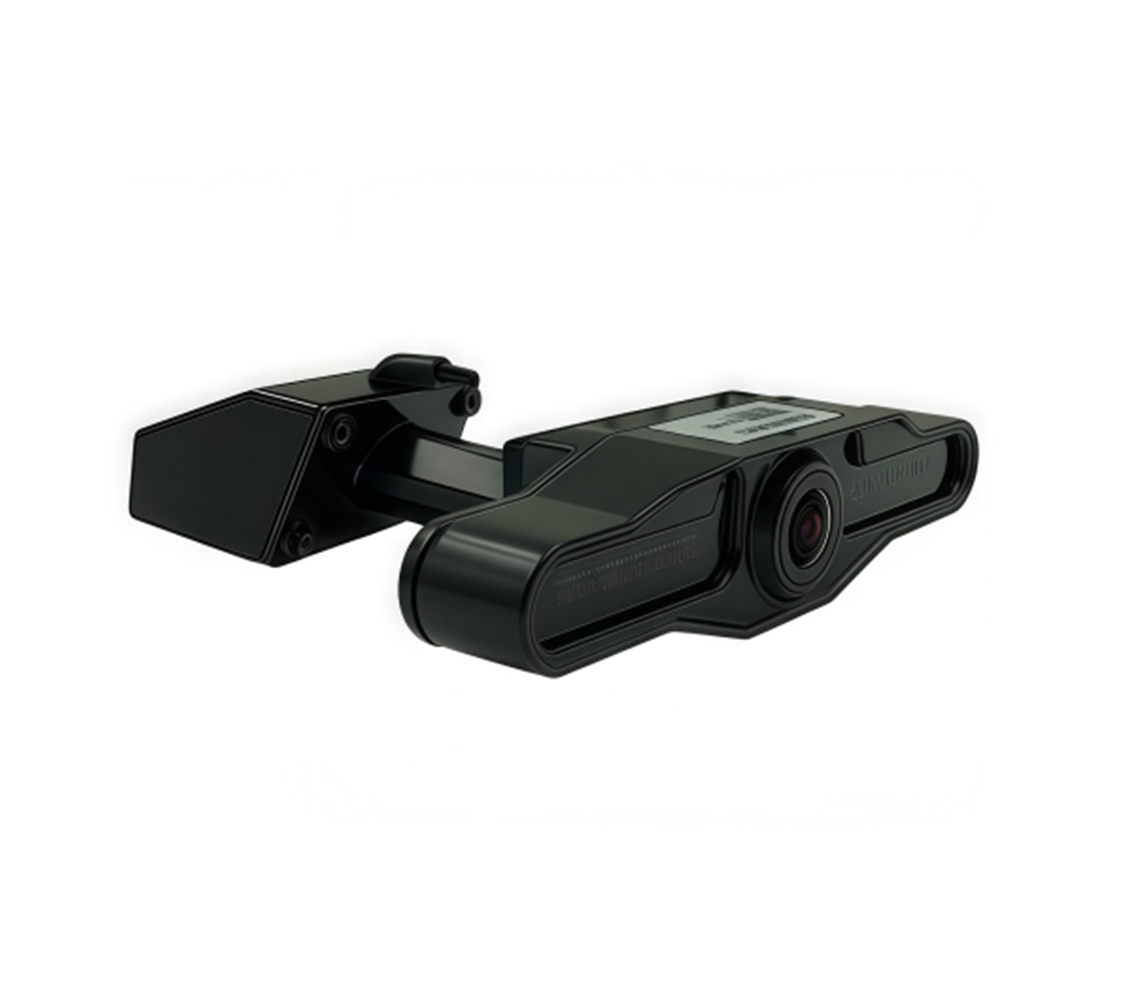

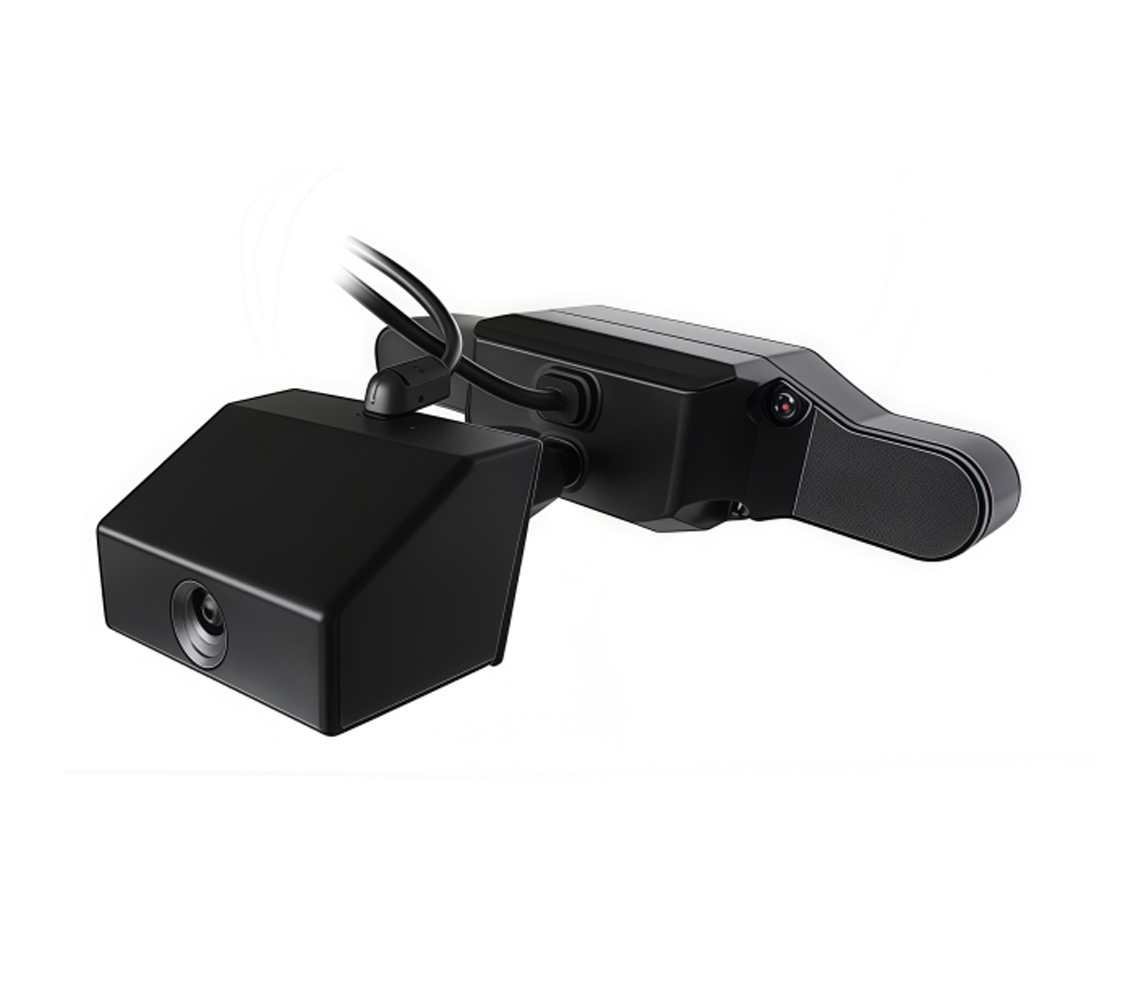

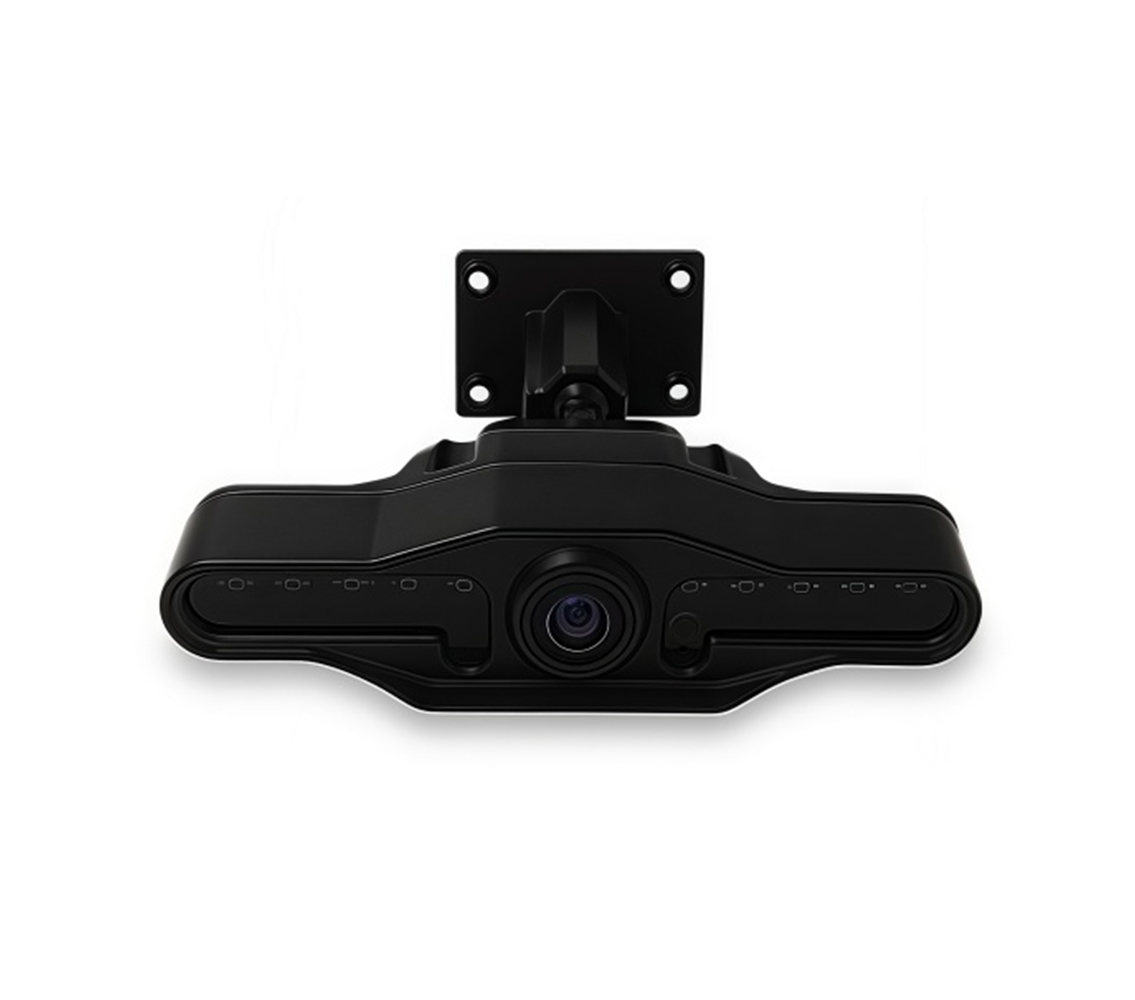

Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasIn-Cabin Cameras
- Certifications
- CEFCCE-MARKROHS
Key features
- Camera Module: AHD default, CVBS optional
- Resolution: 960P
- Viewing Angle: Front 85° / Rear 120°
- TV System: PAL / NTSC switchable
- Night Vision: 10 × 940nm IR LEDs, night vision distance up to 5m
- Audio: Built‑in microphone (optional)
- Mounting: Adjustable windshield bracket, dual cameras can be installed on one bracket or separately
- Power Supply: DC 12V ±10%, low power consumption
- Housing: Black metal material
- Dimension: 117.5 × 126 × 32.5 mm
