Vehicle Cameras
JK-C256
Mini Adjustable Vehicle Camera
Mini adjustable camera for license plate or windshield mounting on cars, pickups, vans, tractors, and commercial vehicles.
jk-c256
Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasIn-Cabin CamerasMini Vehicle Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Camera Module: CVBS / AHD optional
- Resolution: 720P / 960P/1080P
- Viewing Angle : 120° / 150° / 180° optional
- Dynamic Guidelines: Moves with vehicle steering, switchable on and off
- TV System: PAL / NTSC
- Protection: IP69K waterproof

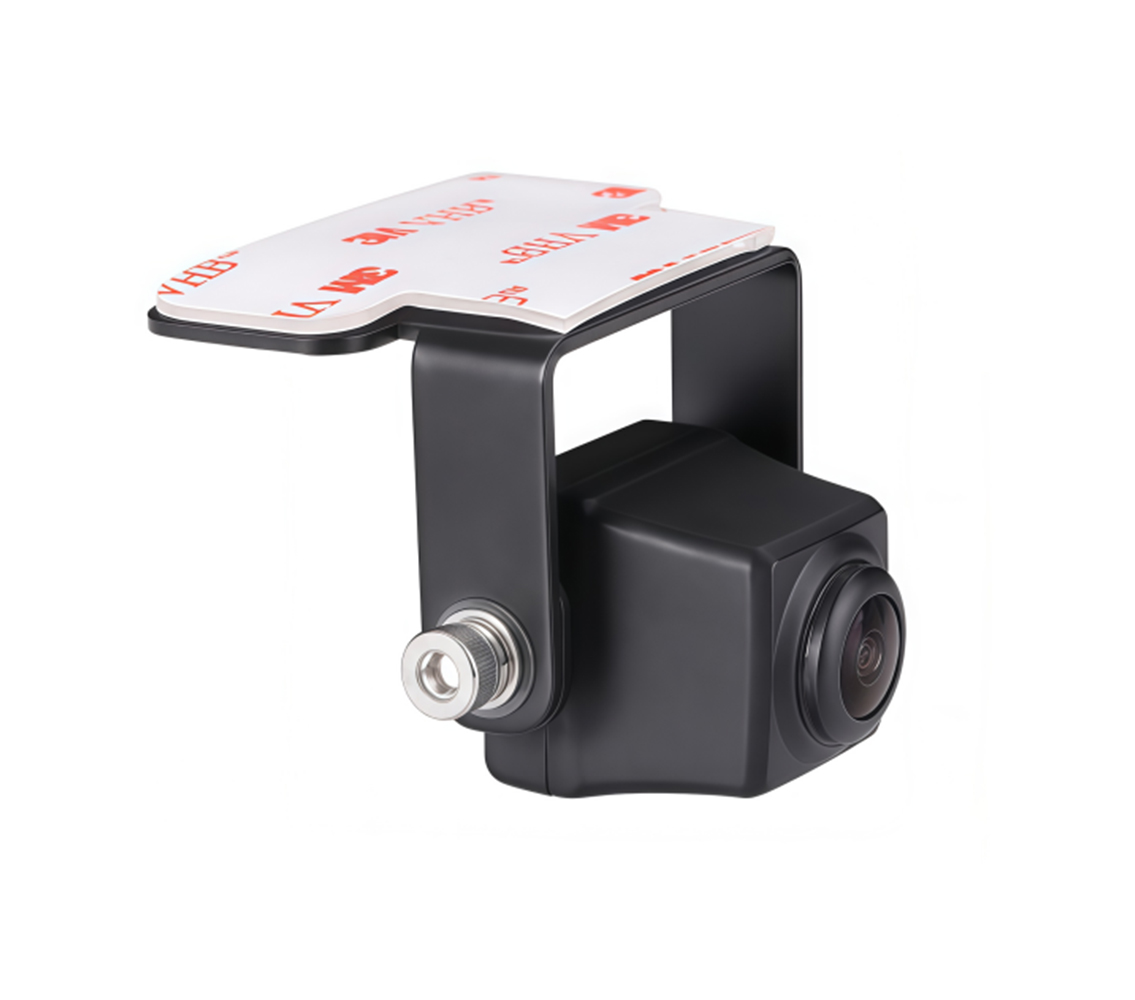

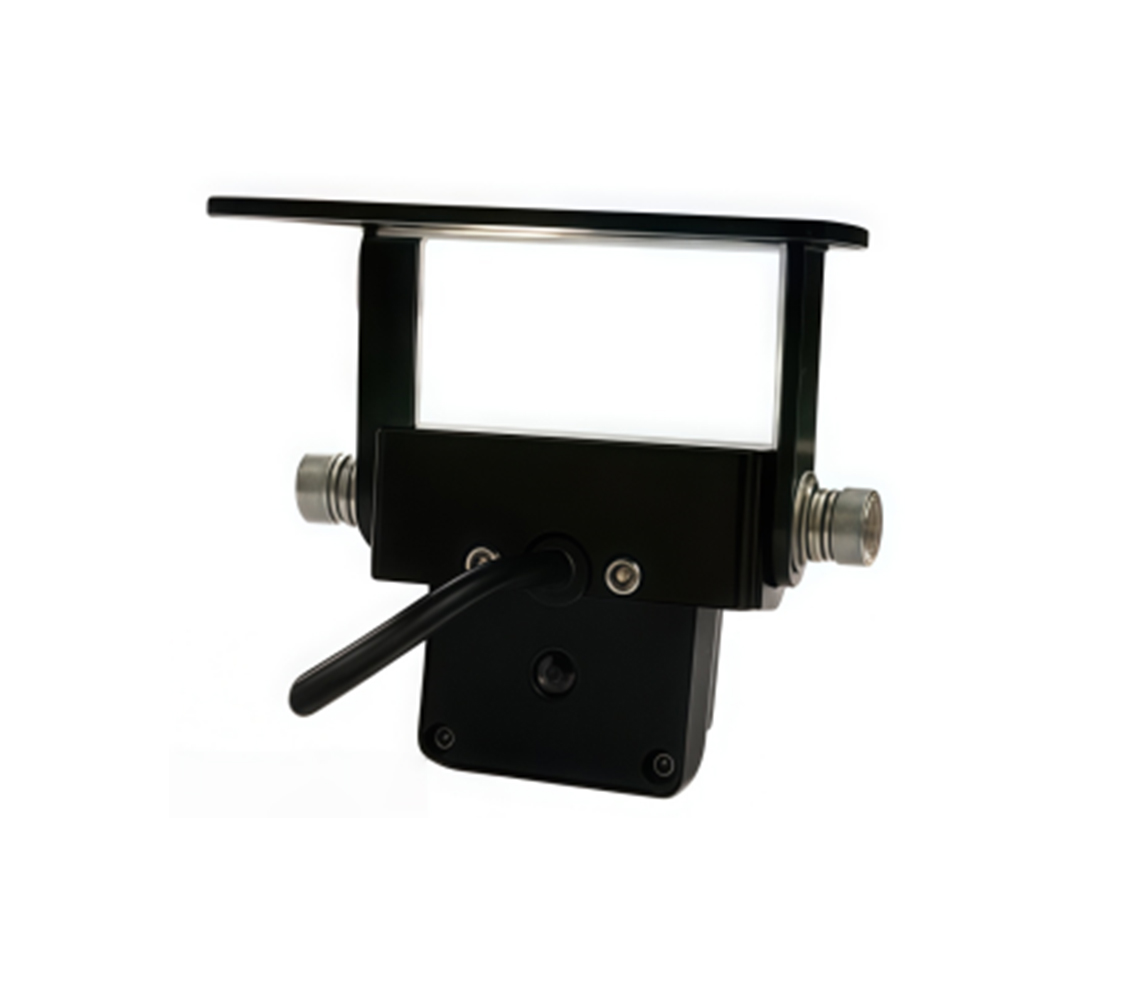

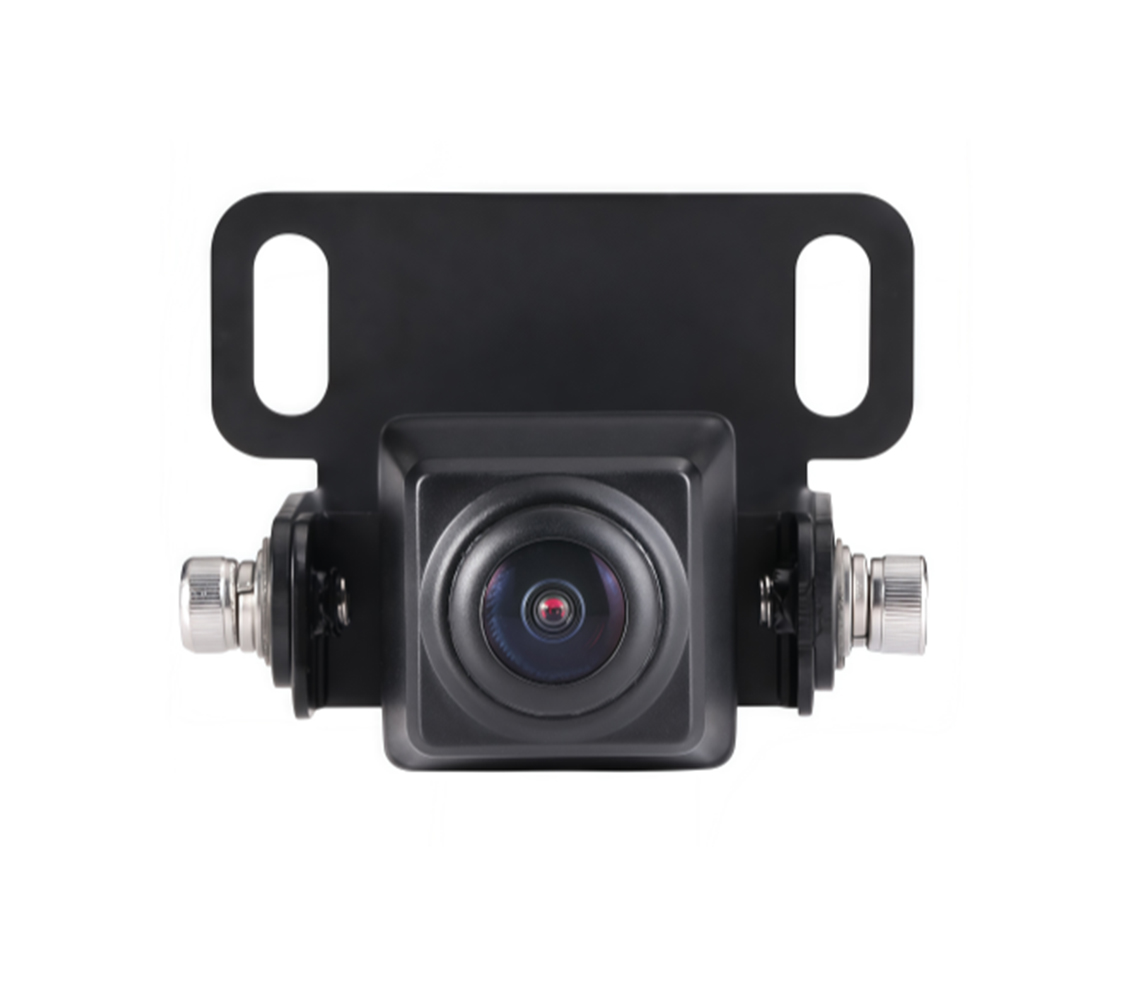

- Mounting: Fixed by double-sided adhesive or screws, suitable for installation above license plate or on windshield
- Power Supply: DC 12V ±10%
- Housing: Black metal material
- Dimension: 38 × 39.3 × 91.4 mm
