Vehicle Cameras
JK-C773

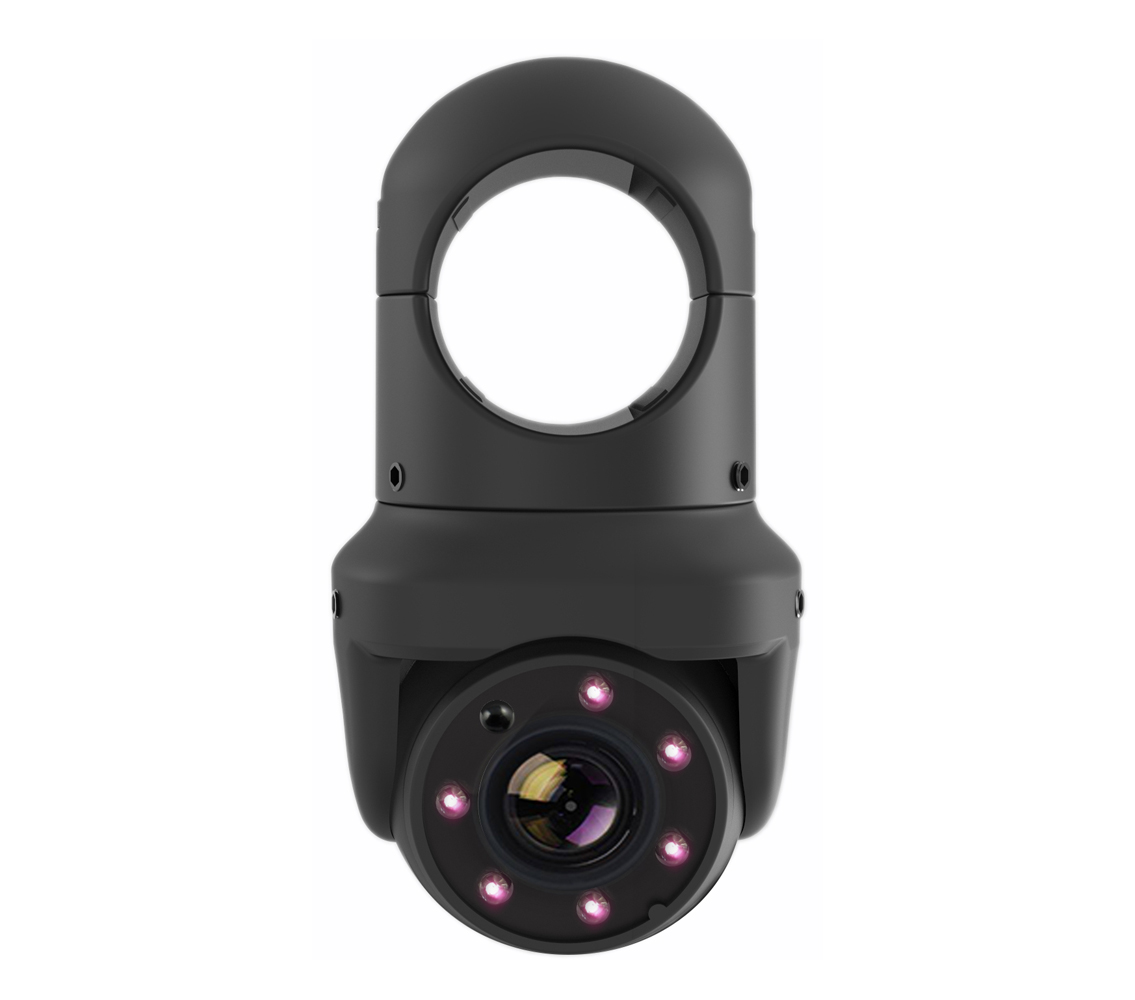

Weatherproof Mirror Clamp Camera
Heavy-duty mirror arm mount camera designed to clamp onto wing mirror frames on buses, trucks, mining vehicles, tractors, and RVs for side blind-spot monitoring.
jk-c773
Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasWide-Angle CamerasIP69K Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Camera Module: CVBS / AHD optional
- Resolution: 720P / 1080P
- Viewing Angle : 120° / 150° / 170° optional
- TV System: PAL / NTSC

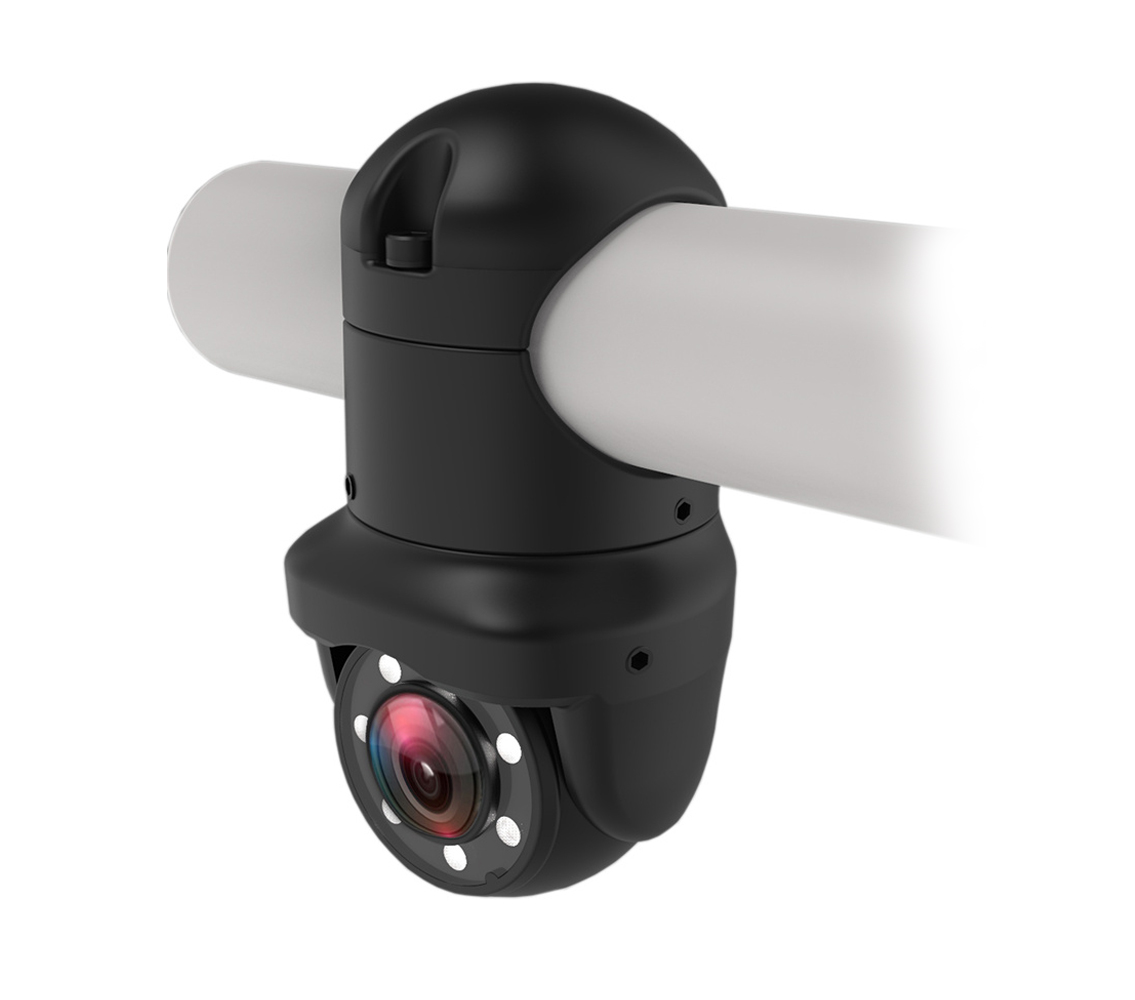

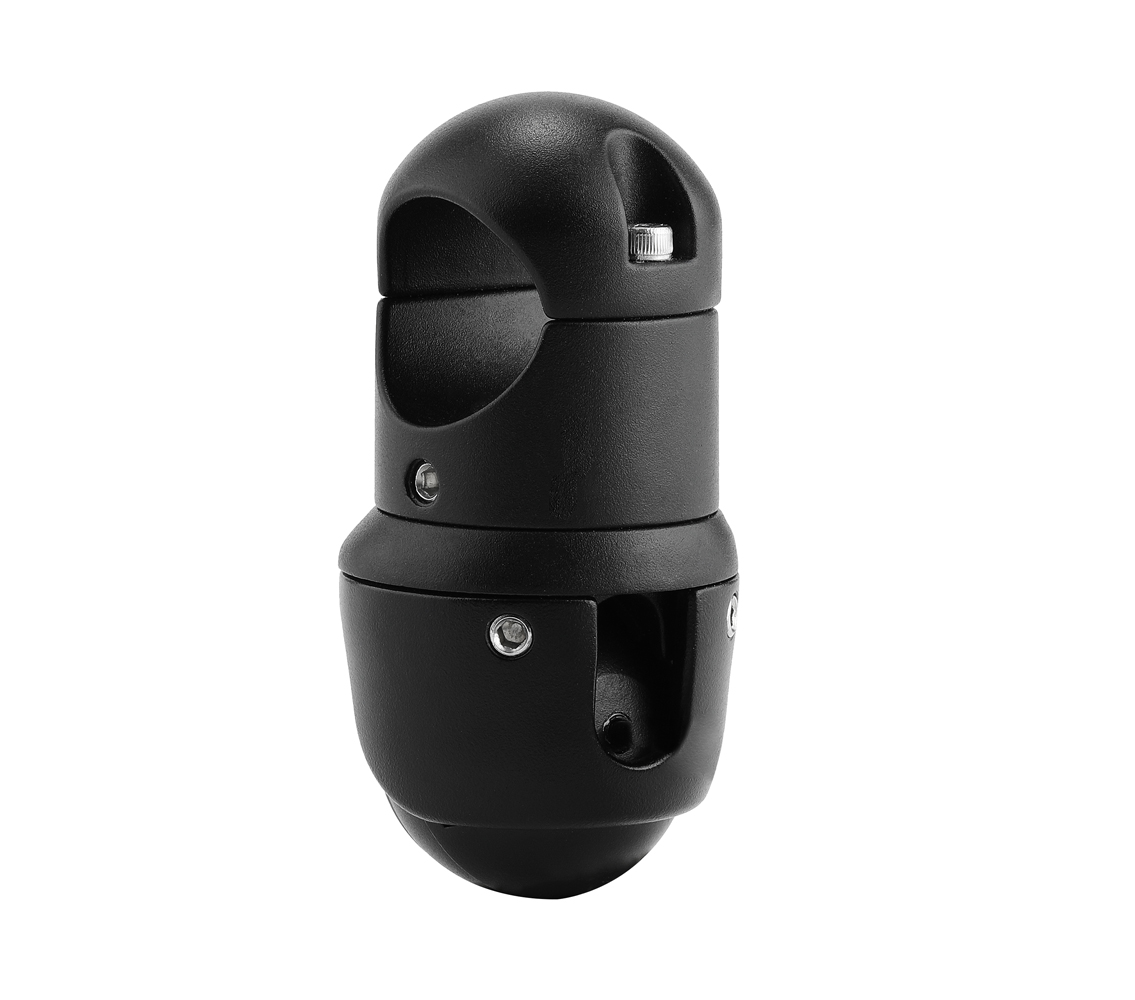

- Mounting: Clamp-mounted to the round mirror support tube or mirror arm of heavy-duty trucks, or directly adhesive-mounted to the vehicle windshield without an additional bracket
- Protection: IP69K waterproof and dustproof; tested for 300-hour salt-spray resistance and UV aging
- Power Supply: DC 12V ±10%
- Housing: Black metal housing
- Dimensions: 47.8 × 43.2 × 41.5 mm
Datasheets & documents
More models in this range
Back to Vehicle Cameras →
Enquire about the JK-C773
Our export sales team provides quotes, datasheets, samples and OEM customisation.
Talk to Sales
