Vehicle Cameras
JK-C771N

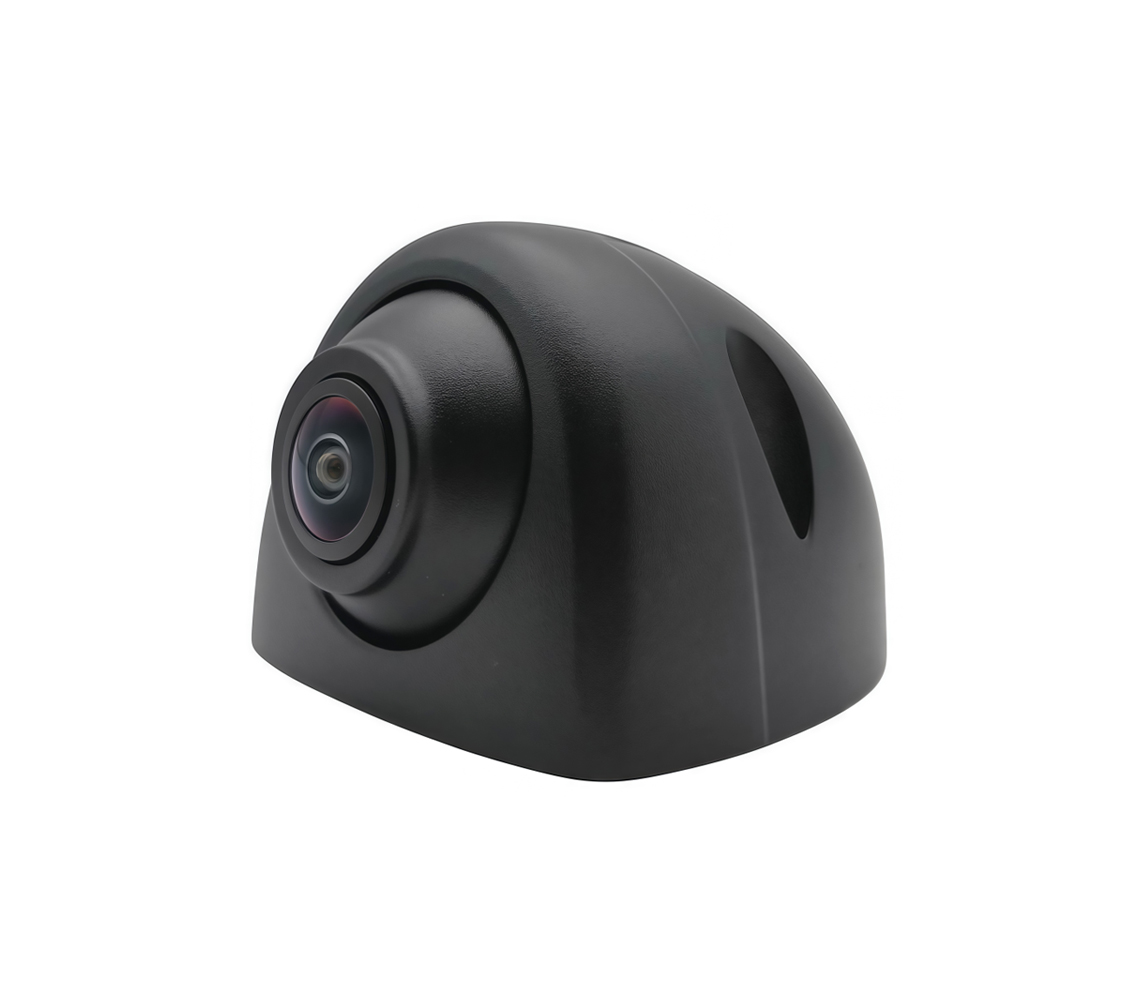

Compact Aerodynamic Surface-Mount Side Camera
Compact surface-mount side-view camera for blind-spot monitoring on buses, coaches, trucks, cranes, and refuse vehicles.
jk-c771n
Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasWide-Angle CamerasIP69K Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Camera Module: CVBS / AHD optional
- Resolution: 720P / 1080P optional
- Viewing Angle : 150° / 180° / 220° optional, 180° wide angle with no dark corners and no distortion
- Low Light Performance: Clear color images in dim conditions
- Lens Adjustment: Manually adjustable lens angle
- TV System: PAL / NTSC
- Protection: Metal housing, IP69K waterproof
- Mounting: Screw-mounted, suitable for mirror base, door bottom and vehicle side panels
- Housing: Metal material
- Dimension: 52 × 50.7 × 38.5 mm
Datasheets & documents
More models in this range
Back to Vehicle Cameras →
Enquire about the JK-C771N
Our export sales team provides quotes, datasheets, samples and OEM customisation.
Talk to Sales
