Vehicle Cameras
JK-C771L

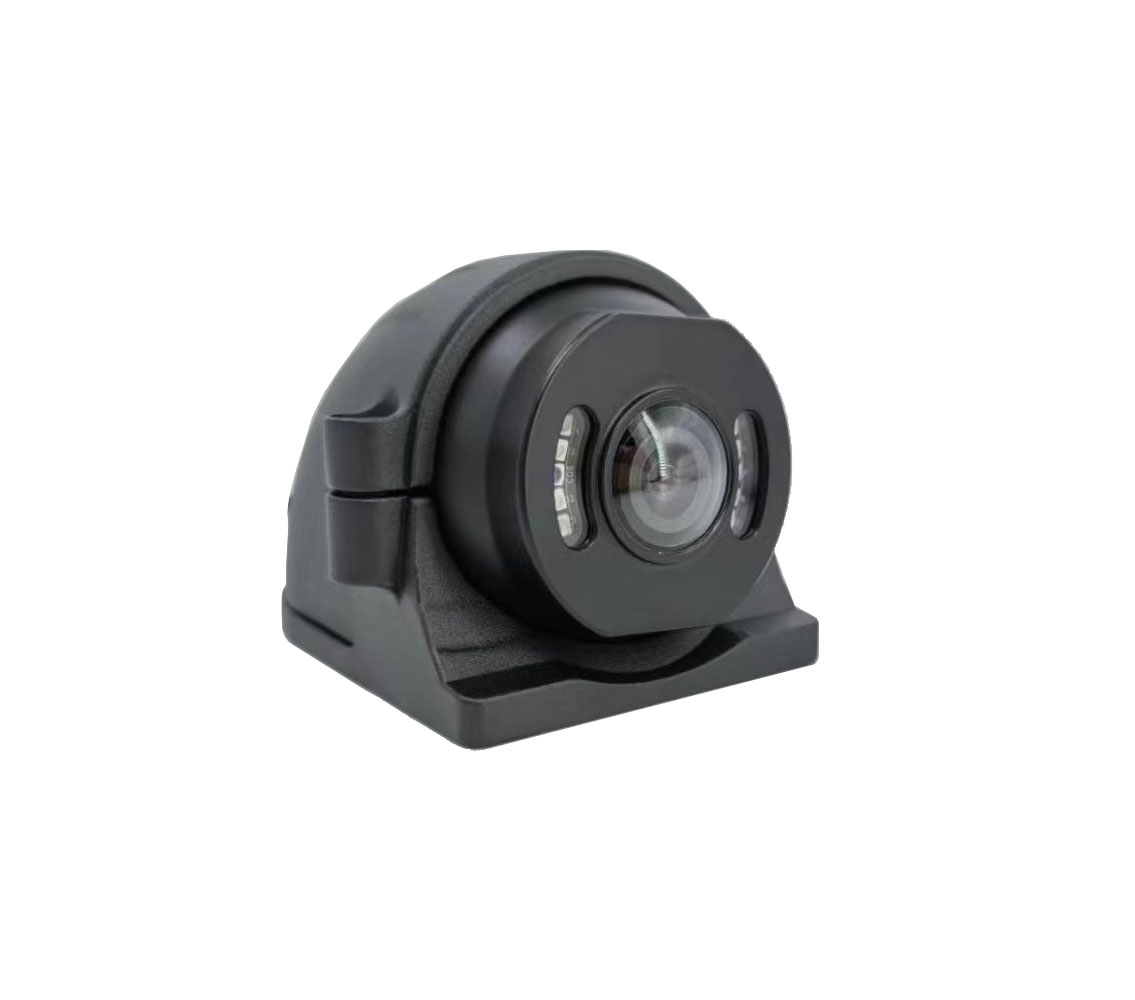

Aerodynamic Side View Mount Camera
This side-view and reversing camera fits a wide range of truck models, providing clear day and night visibility for safer vehicle operation. Its IP67 metal housing, tempered glass and 12 IR LEDs deliver reliable protection and 5–10m night vision.
jk-c771l

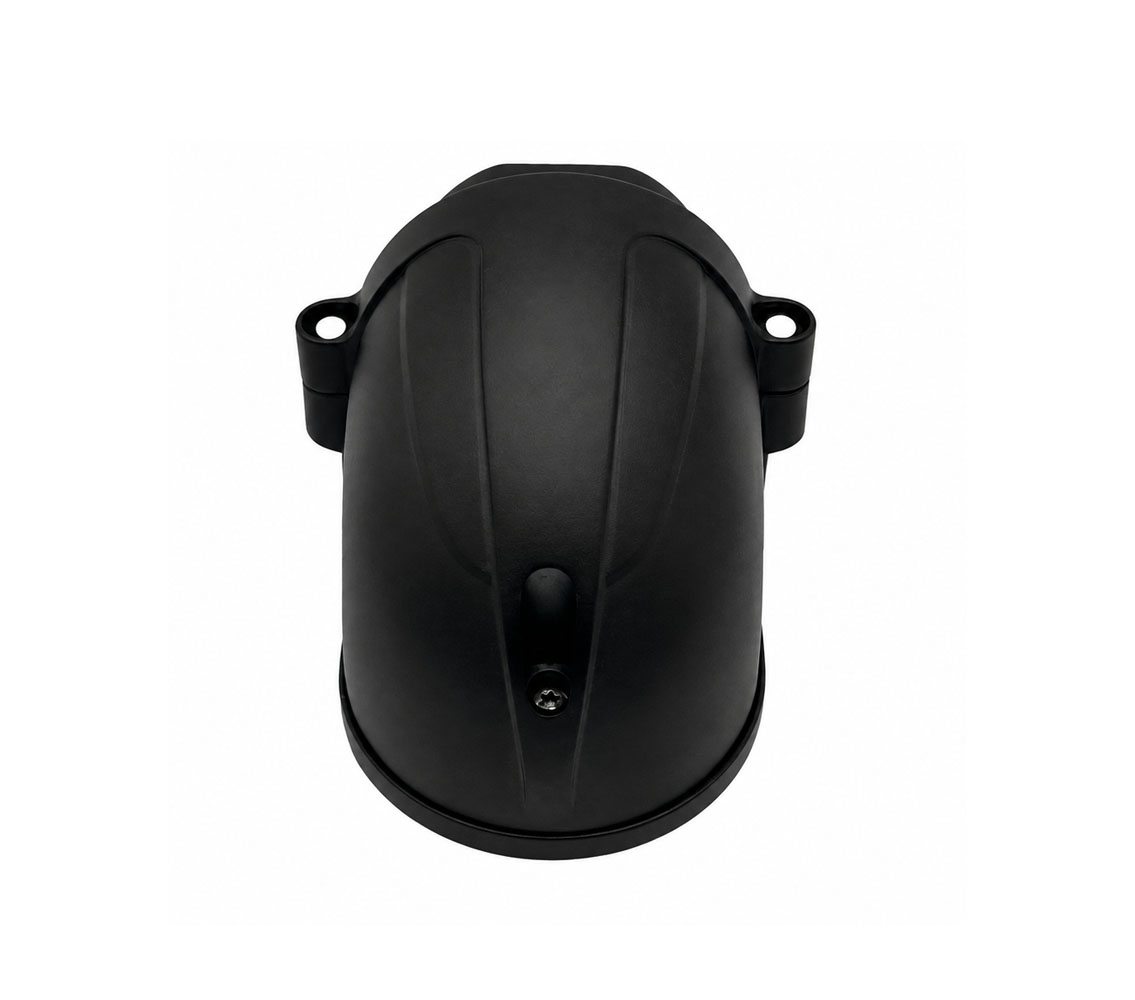

Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasAI CamerasWide-Angle Cameras
- Certifications
- CEFCCE-MARKROHS
Key features
- Camera Module: AHD / CVBS
- Resolution: 1080P HD
- Sensor: 1/2.9 inch CMOS
- Image Technology: 3DNR & high sensitivity for clear low-light imaging
- Lens: 2.8mm / F1.6 large aperture
- Protection: Metal housing & tempered glass, IP67 waterproof dustproof
- Mounting: Fixed with 304 stainless steel screws
- Night Vision: 12 IR LEDs, 5‑10m night vision distance
- Power Supply: DC 12V
- Dimension: 90 × 75 × 60 mm
