Vehicle Cameras

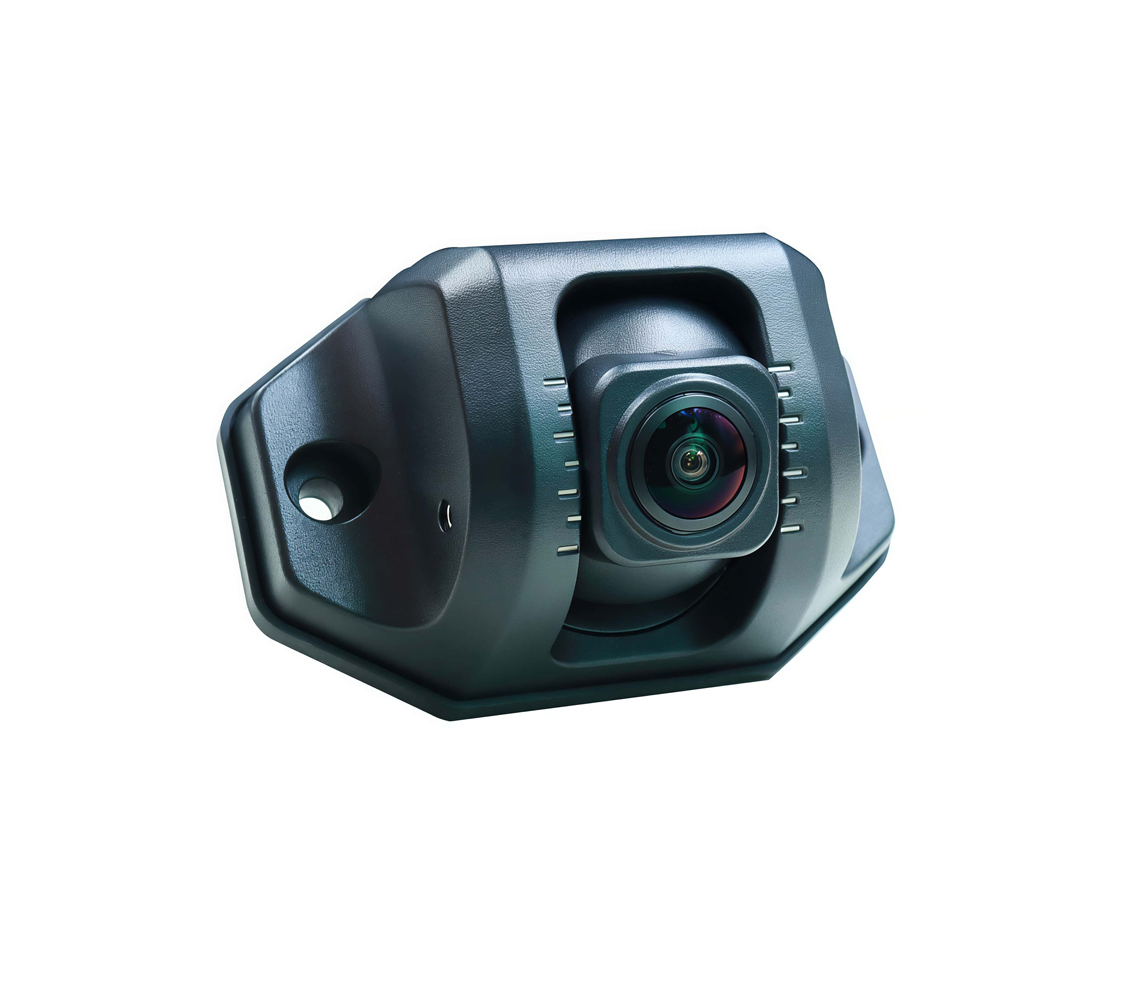

JK-C262
360° Surround-View Camera
This wide-angle surface-mount camera features a compact and provides broad coverage to reduce blind spots in vehicle 360° surround-view systems. Its IP69K waterproof and vibration-resistant construction ensures reliable performance on commercial and passenger vehicles.
jk-c262
Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasWide-Angle CamerasIP69K Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Resolution: 720P / 1080P AHD optional
- Resolution: 120°/150°/180°/fisheye 210°
- Housing: Vandal‑proof metal housing
- Power Supply: DC 12V
- Connector: Optional 4Pin / RCA / BMW / BNC / Molex
- Protection: IP69 waterproof
- Application: Exterior use for cars, taxis, buses, trucks, trailers and vans
- Dimension: 77.3 × 50.8 × 38 mm
