Vehicle Cameras
JK-C259
360° Surround View Car Camera
Easy to install and compliant with vehicle anti-vibration design standards. Built-in 4-channel image stitching algorithm supports external 360° panoramic controller, enabling convenient installation and maintenance.
jk-c259

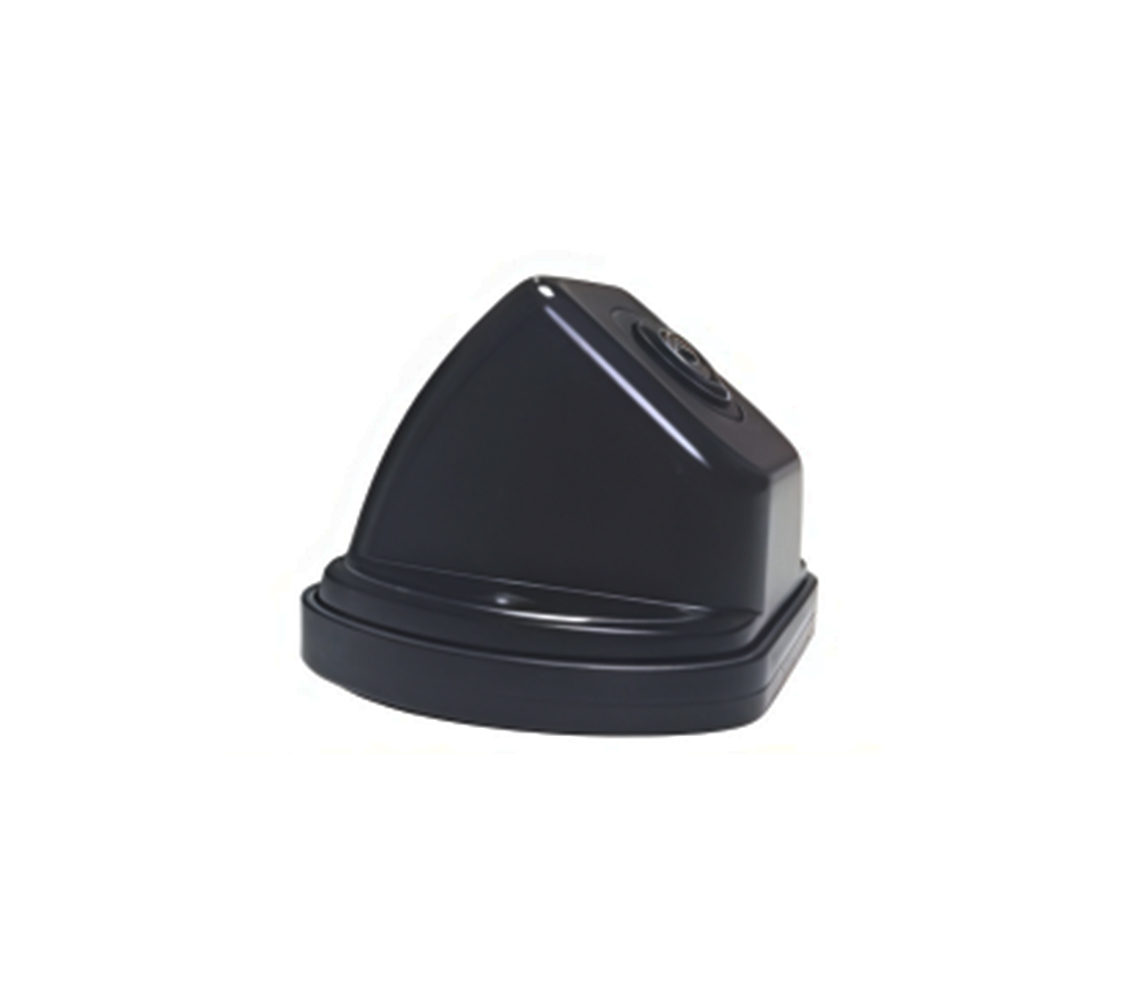

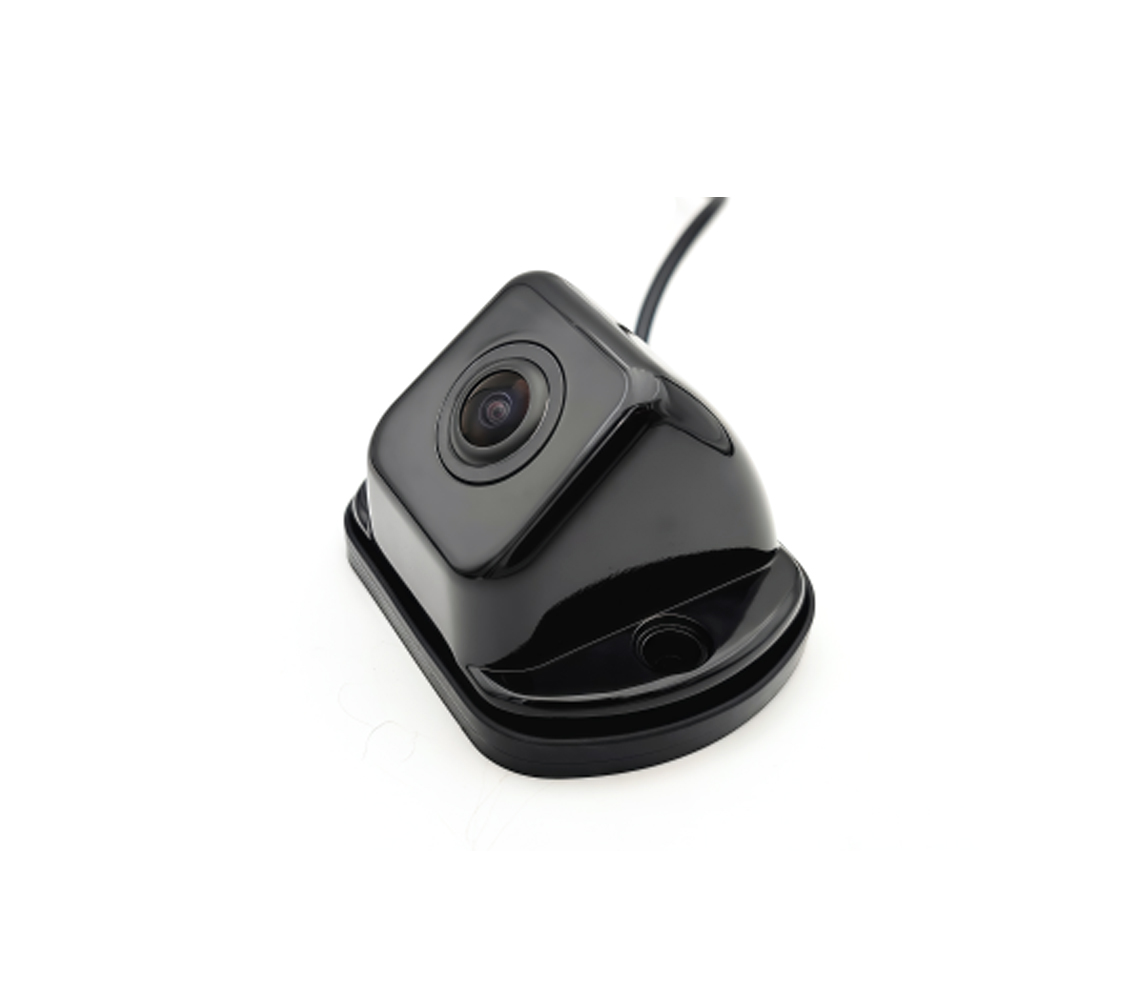

Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasWide-Angle CamerasIP69K Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Resolution: 720P / 1080P AHD optional
- FOV: 150° / 170° wide angle
- Housing: Vandal-proof metal housing
- Power Supply: DC 12V
- Connector: Optional 4Pin / RCA / BMW / BNC / Molex
- Protection: IP69 waterproof
- Application: Exterior use for cars, taxis, buses, trucks, trailers and vans
- Dimension: 60.7 × 43.8 × 36.8 mm
Datasheets & documents
More models in this range
Back to Vehicle Cameras →
Enquire about the JK-C259
Our export sales team provides quotes, datasheets, samples and OEM customisation.
Talk to Sales
