Vehicle Cameras
JK-C258

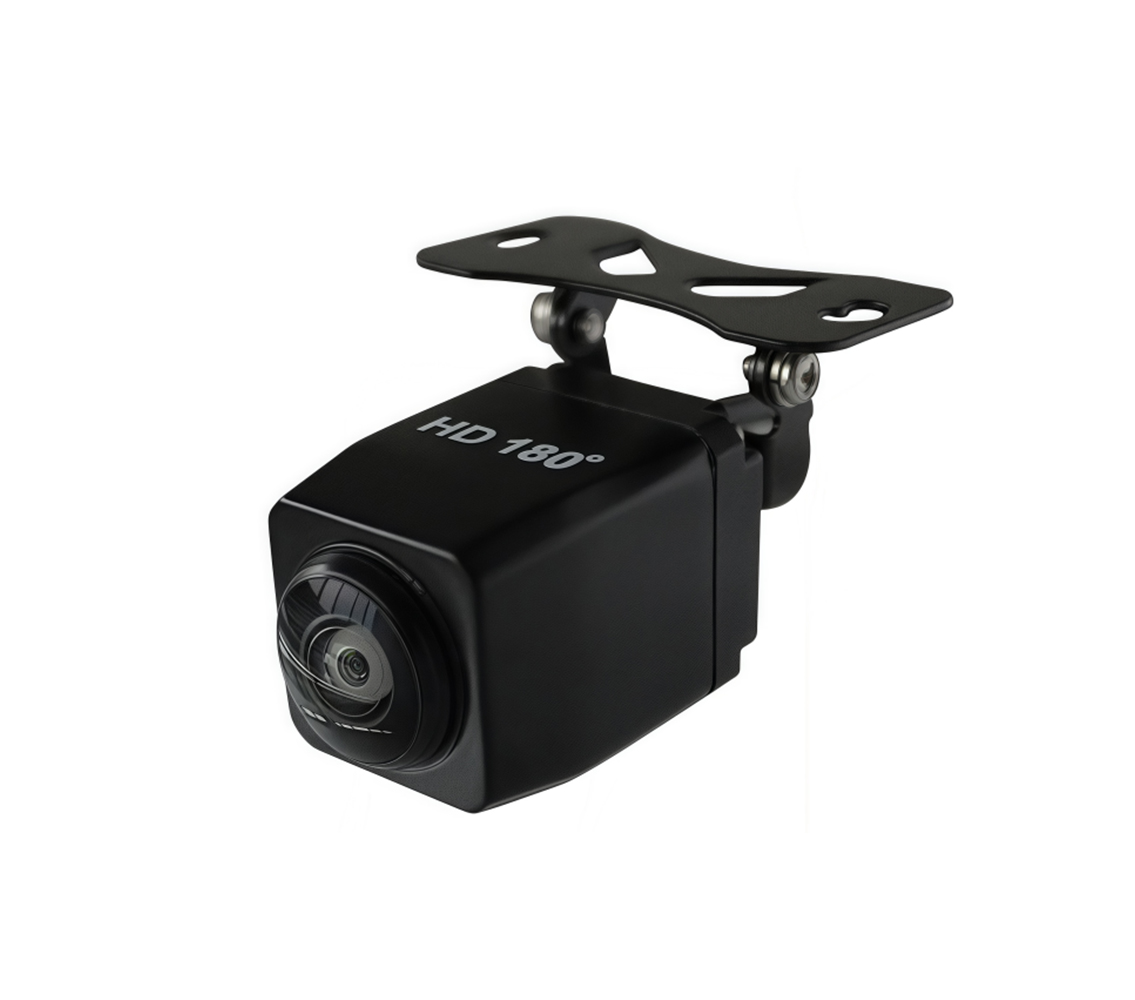

Mini Distortion-Free Camera
Mini reversing camera for cars, pickups, vans, and commercial vehicles, mounted above the license plate or on the windshield.
jk-c258

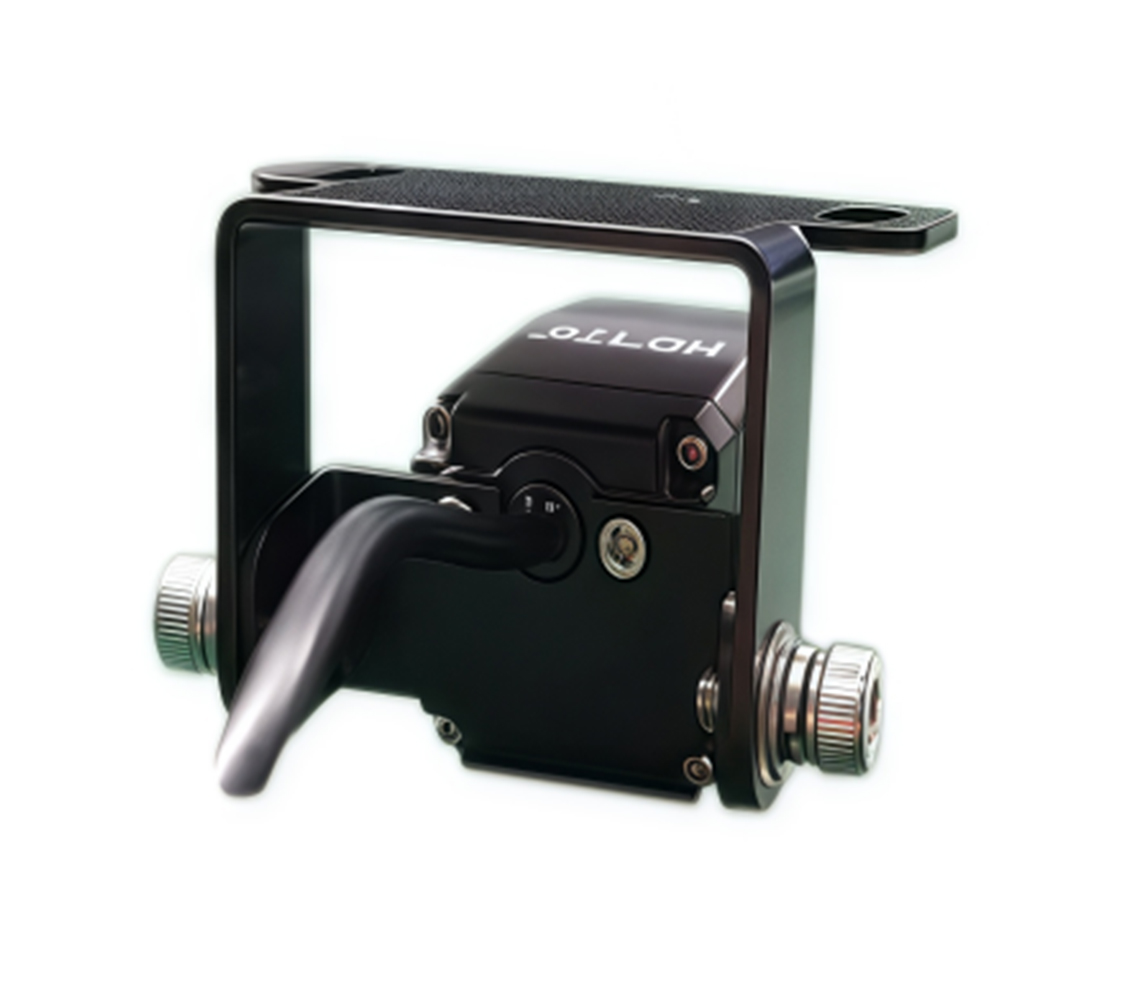

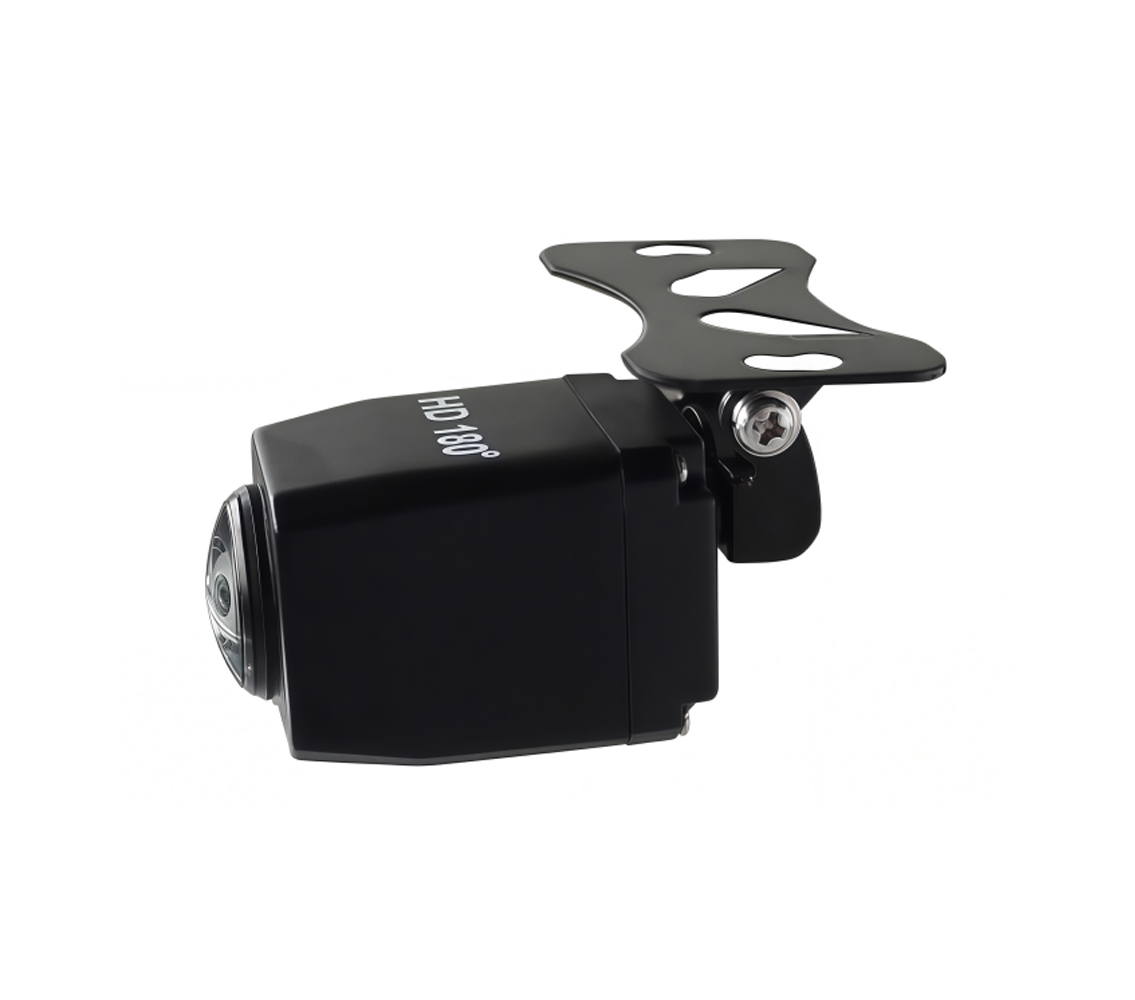

Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- AHD/CVBS CamerasIn-Cabin CamerasMini Vehicle Cameras
- Certifications
- CEFCCE-MARKROHSIP69K
Key features
- Camera Module: CVBS / AHD optional
- Resolution: 720P /960P/ 1080P
- Viewing Angle : 120° / 150° / 170° optional, 170° exclusive imported lens
- Parking Guidelines: Switchable on and off
- Night Vision: Low-light imaging supported
- TV System: PAL / NTSC
- Protection: IP69K waterproof
- Mounting: Fixed by double-sided adhesive or screws, suitable for installation above license plate or on windshield
- Power Supply: DC 12V ±10%
- Lens Feature: No distortion, no deformation, no dark corners, zero image correction required
- Housing: Black metal material
- Dimension: 23.5 × 23.5 × 32 mm
