JKT-A7064KS-SD
7-Inch IPS vehicle camera Display with Touch Buttons
This 7‑inch high‑brightness IPS vehicle monitor supports up to four mixed 1080P/720P AHD and CVBS cameras with flexible split‑screen viewing for front, side and rear monitoring. Its built‑in H.264 DVR, 256GB storage support and DC 9–36V input make it a reliable backup camera monitor for trucks, buses and heavy‑duty vehicles.
jkt-a7064ks-sd

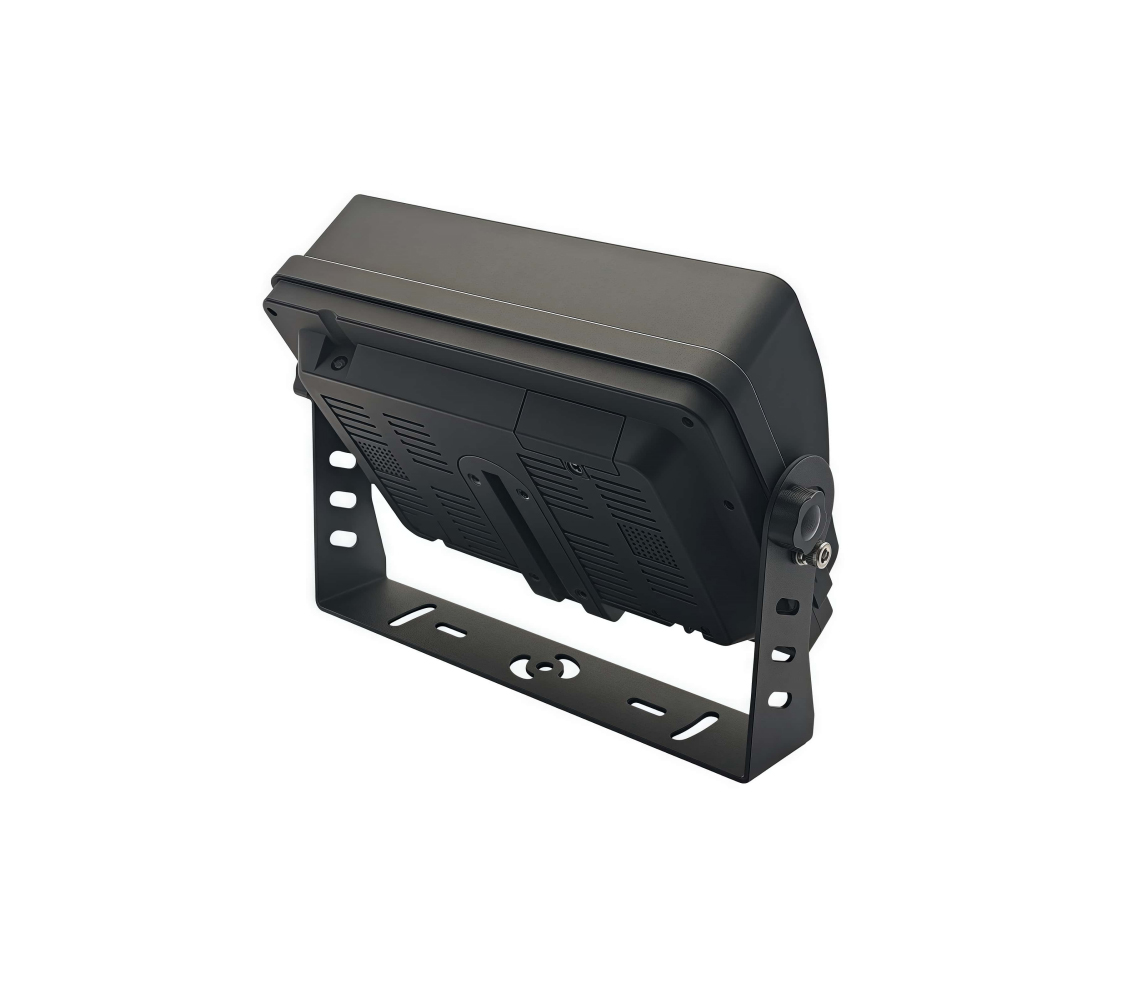

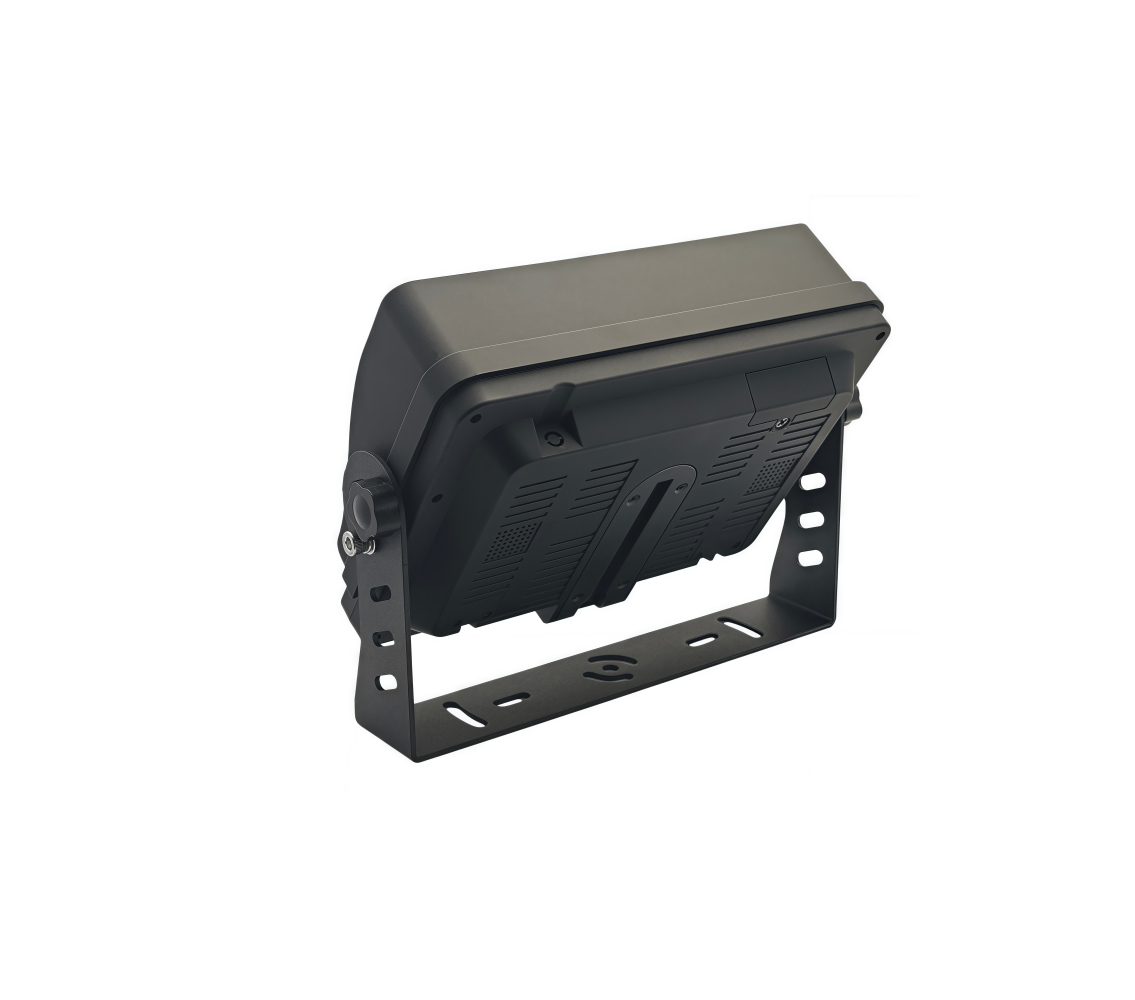

Additional product views
Product information and documents supplied by JMK; configuration-specific details are confirmed at quotation.
- Product type
- 7-Inch Monitors
- Certifications
- CEFCCE-MARKROHS
Key features
- 7-Inch High-Brightness IPS Monitor: The 1024×600 IPS display delivers 800 cd/m² brightness, with durable physical control buttons and a detachable sun visor for clear viewing in strong daylight.
- 2CH/4CH HD Camera Input: Supports mixed 1080P/720P AHD and CVBS cameras, automatic PAL/NTSC detection, and single, dual, triple and quad-view display modes.
- DVR Loop Recording and Playback: The built-in H.264 DVR supports AVI recording and SD/TF cards up to 256GB, automatically overwriting older files when storage is full and enabling instant playback.
- Night Vision and Reversing Assistance: Supports 3D noise reduction, image mirroring, reversing guidelines and automatic trigger switching. Compatible night-vision cameras provide clear monitoring in low-light conditions.
- Designed for Commercial and Heavy-Duty Vehicles: DC 9–36V wide-voltage input, a −20°C to +70°C operating range and anti-vibration mounting make it suitable for front, side and rear-view monitoring on pickups, trucks, buses and heavy machinery.
- OEM Customization: Camera quantity, recording functions, logo, packaging and accessories can be customized for distributors, installers and fleet projects.
Datasheets & documents

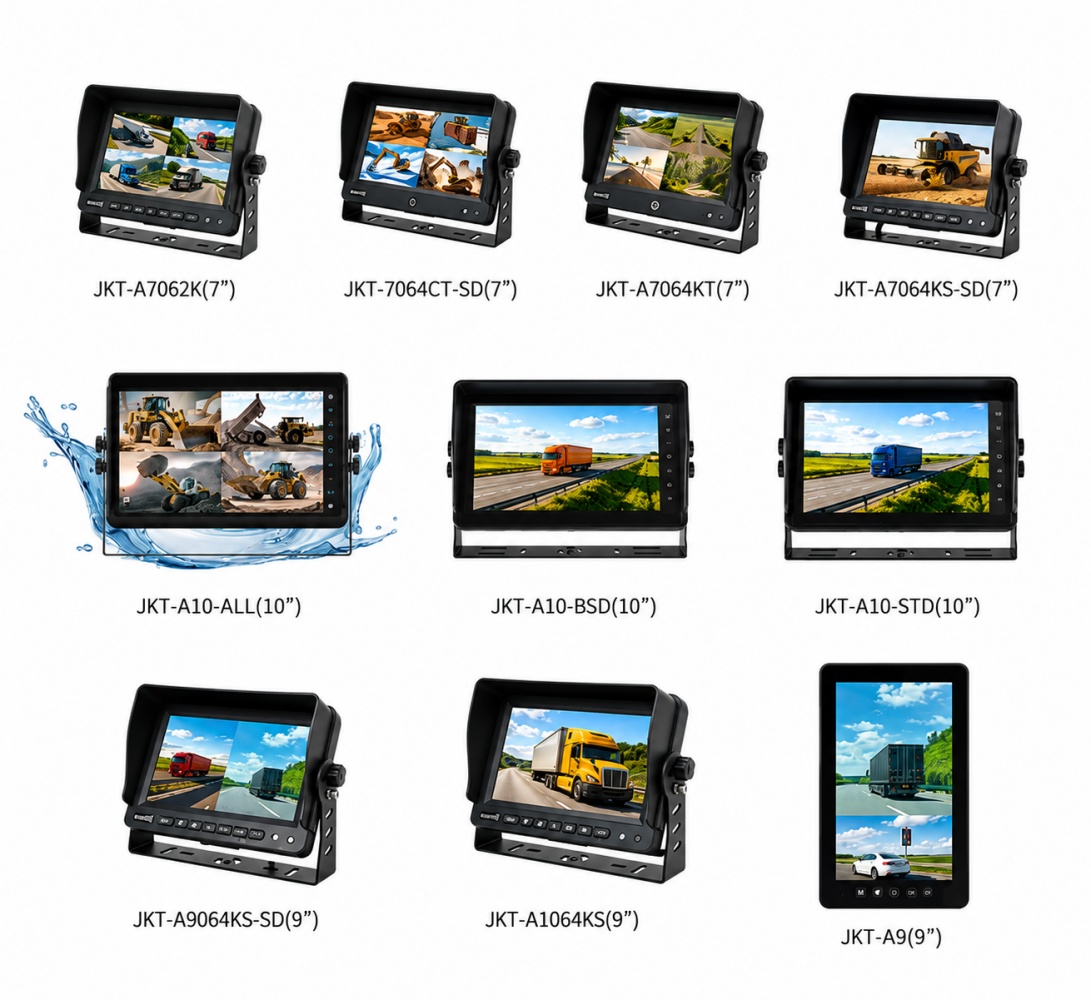

More models in this range
